| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
701 pcs
|
701 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
701 pcs
|
701 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

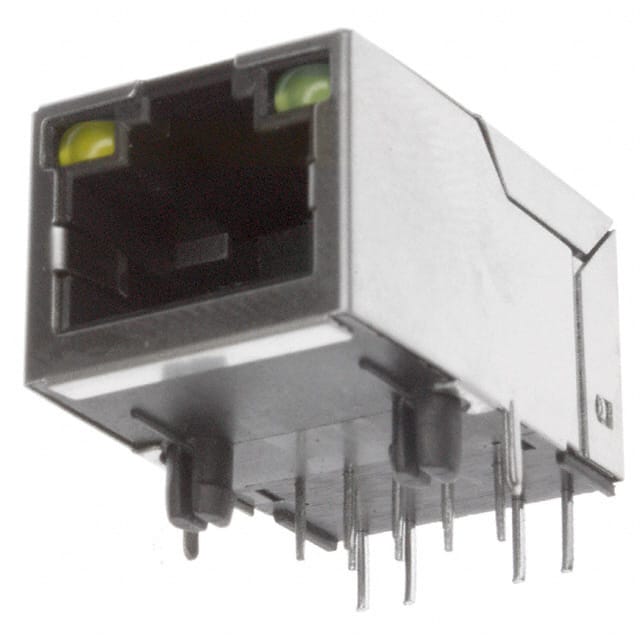

The Würth Elektronik 7499010121A is a single-port RJ45 connector jack with integrated magnetics, part of the WE-RJ45LAN series. The connector uses a 1x1 configuration with 4 cores per jack, is through hole mounted, and oriented at a 90° right angle with the tab facing up. It features a shielded design to reduce electromagnetic interference and includes a board guide for mechanical stability during insertion. The jack is rated for 10/100 Base-T Ethernet applications and includes AutoMDIX functionality for automatic crossover detection. Contact surfaces are finished with gold over a tin contact material. An integrated yellow-green LED provides link/activity indication. Operating temperature range is 0°C to 70°C, making it suitable for standard commercial environments. The connector stands 0.531" (13.49mm) above the board.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.37 | $6.37 |
| 10+ | $6.19 | $6.19 |
| 50+ | $5.90 | $5.90 |
| 100+ | $5.60 | $5.60 |
| 500+ | $5.01 | $5.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part number is 7499010121A from Würth Elektronik.
It supports 10/100 Base-T and includes AutoMDIX.
It is a through hole mounting type with a right angle (90°) orientation and tab up.
Yes, it is shielded.
0°C to 70°C.
0.531" (13.49mm).
