| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

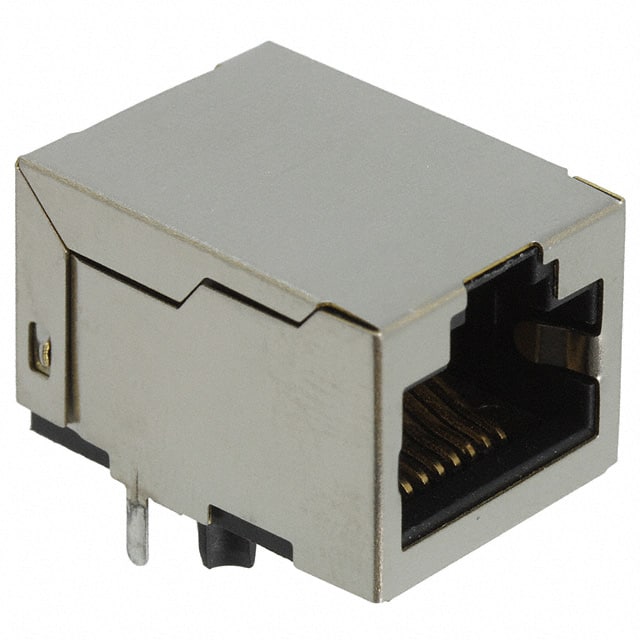

The 74990100011A is a single port RJ45 connector jack with integrated magnetics from Würth Elektronik. It is designed for 10/100Base-TX Ethernet applications compliant with IEEE 802.3u. The jack features a shielded design to provide EMI protection and supports Auto MDIX for automatic crossover detection.
The connector is through hole mounted with a right angle (90°) orientation, making it suitable for space-constrained PCB layouts. The housing is made of thermoplastic UL-94V0 rated material, and the contact plating consists of 100% tin with nickel underplating and 30µ" gold on the contact area for reliable connections.
Key electrical characteristics include a turns ratio of 1:1 for both transmit and receive channels, and a hipot test rating of 1500Vrms for 1 minute. The operating temperature range is -40°C to +85°C, allowing use in industrial environments.
This component is commonly used in networking equipment such as routers, switches, and embedded systems requiring Ethernet connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.75 | $7.75 |
| 10+ | $7.62 | $7.62 |
| 50+ | $7.08 | $7.08 |
| 100+ | $6.53 | $6.53 |
| 500+ | $5.99 | $5.99 |
| 1,000+ | $5.44 | $5.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
RJ45 connector.
1 port.
Through hole mounting.
90° angle (right angle).
Yes, shielded.
-40°C to +85°C.
Yes, compliant with IEEE 802.3u for 10/100Base-TX applications.
