| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

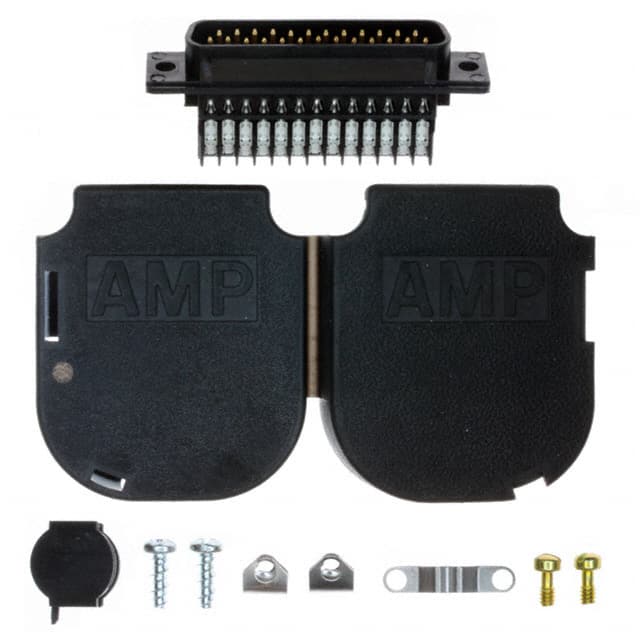

The TE Connectivity 749809-9 is a D-Sub plug connector with 25 male pin positions arranged in 2 rows. It features IDC (Insulation Displacement Contact) termination for discrete wire, enabling quick and reliable wire-to-connector assembly without stripping. The connector is designed for free hanging (in-line) mounting, making it suitable for cable-to-cable or cable-to-panel applications where a fixed board mount is not required.
Contacts are gold flashed for reliable signal transmission and corrosion resistance. The shell is constructed from steel with a tin plated finish, providing durability and EMI shielding. The housing material meets UL94 V-0 flammability rating, ensuring safe operation in a variety of environments. The flange feature is housing/shell unthreaded, and the connector layout is shell size 3 (DB, B).
Current rating varies by wire gauge, so designers should consult the wire specifications for exact limits. This connector is commonly used in data communication, industrial control, and instrumentation systems requiring a standard 25-pin D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.17 | $24.17 |
| 10+ | $20.54 | $20.54 |
| 25+ | $19.25 | $19.25 |
| 50+ | $18.33 | $18.33 |
| 100+ | $17.46 | $17.46 |
| 250+ | $16.37 | $16.37 |
| 500+ | $15.59 | $15.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Male Pins.
25 positions arranged in 2 rows.
IDC (Insulation Displacement Contact) for discrete wire.
Free Hanging (In-Line).
Gold flash.
Steel, Tin Plated.
UL94 V-0.
