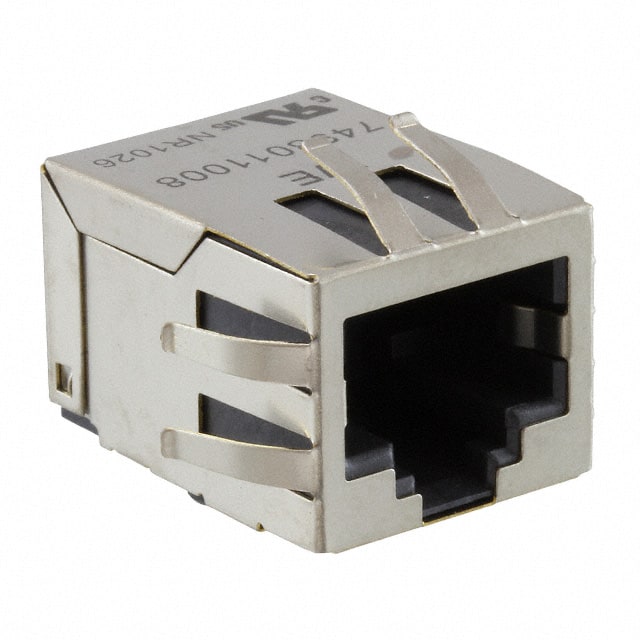

The Würth Elektronik 7498011008 is a single-port RJ45 jack with integrated magnetics designed for 10/100 Base-T Ethernet applications. It features a right-angle orientation (90°), tab-down shielding, and EMI fingers for enhanced electromagnetic interference protection. The connector is surface mount with solder termination and includes board guide and solder retention features for reliable assembly.
Electrically, the integrated magnetics provide a 1:1 turns ratio for both transmit and receive channels, with a minimum inductance of 350 µH at 100kHz/100mV under 8mA DC bias. The isolation voltage is rated at 1500 Vrms minimum (hipot test 1 minute). Return loss meets at least -20 dB from 1-10 MHz and -18 dB at 30 MHz, while insertion loss is a maximum of -1.0 dB over 1-100 MHz. The connector supports AutoMDIX for automatic crossover detection.
Mechanical specifications include a height above board of 13.59 mm, gold contact plating (30µ" gold on contact area, with tin underplate), and a housing made of thermoplastic UL-94V0. The operating temperature range is -40°C to 85°C, making it suitable for industrial environments. The base material is ferrite, and the shield is 50µ" nickel over 0.01" copper alloy.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.82 | $7.82 |
| 10+ | $7.69 | $7.69 |
| 50+ | $7.14 | $7.14 |
| 100+ | $6.59 | $6.59 |
| 500+ | $6.04 | $6.04 |
| 1,000+ | $5.49 | $5.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface Mount.
1 port.
90° Angle (Right).
Yes, shielded with EMI fingers.
-40°C to 85°C.
350 µH minimum at 100kHz, 100mV, 8mA DC bias.
1500 Vrms minimum, hipot test 1 minute.
