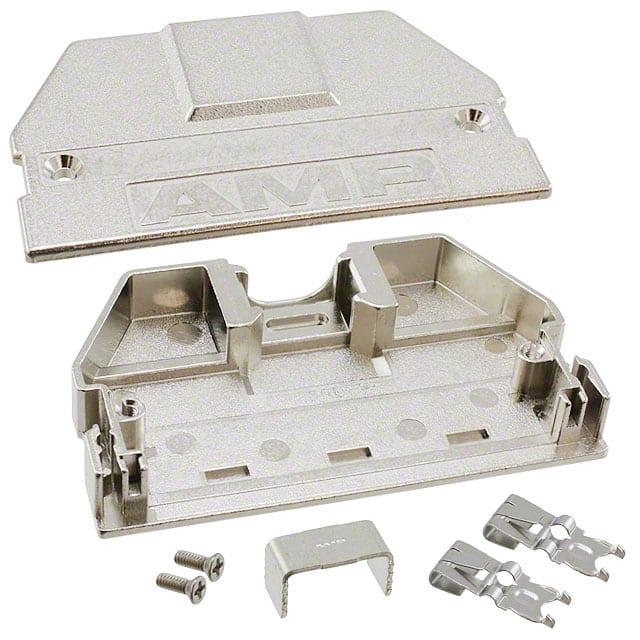

749196-2 TE Connectivity 749196-2 is a two-piece D-Sub backshell with 80 positions, 180° cable exit, and shielded construction. It features a zinc metal body with nickel over copper plating and a spring lock for secure assembly.
Mfr Part #:

749196-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 749196-2 is a two-piece D-Sub backshell with 80 positions, 180° cable exit, and shielded construction. It features a zinc metal body with nickel over copper plating and a spring lock for secure assembly.
✓ Total Stock: 150 pcs

749196-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

749196-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
SVHC Present
Shielding
View Similar Products (0)

749196-2 Description

Short technical summary and product information.

The TE Connectivity 749196-2 is a two-piece backshell designed for D-Sub connectors. It accommodates 80 positions and provides a 180° cable exit for straight cable routing. The backshell is shielded to protect against electromagnetic interference. It is constructed from zinc metal with a nickel over copper plating, giving it a silver appearance. The backshell includes spring lock hardware and features assembly hardware and strain relief for secure cable management. It is designed for use with round cables. The product is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).

749196-2 Quick Information

Product Type: D-Sub Backshell
Series: 749196
Canonical Name: D-Sub Backshell, 80 Position, Shielded, 180° Cable Exit, Round Cable, Zinc Metal, Nickel Plated, Silver
Subcategory: D-Sub, D-Shaped Connector Backshells, Hoods

749196-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

749196-2 Features

  • 80 positions for D-Sub connectors.
  • Shielded construction for EMI protection.
  • 180° cable exit for straight routing.
  • Zinc metal body with nickel plating.
  • Spring lock for secure assembly.

749196-2 Applications

  • Provides EMI shielding for data cables.
  • Suitable for industrial automation systems.
  • Used in test and measurement equipment.
  • Ideal for telecommunications backplanes.

749196-2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of positions?

80 positions.

What is the cable exit angle?

180°.

Is the backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Zinc metal with nickel over copper plating.

What hardware is included?

Assembly hardware and strain relief.

What is the accessory type?

Two piece backshell.
