| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26 pcs
|
26 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Material | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Voltage Rating |

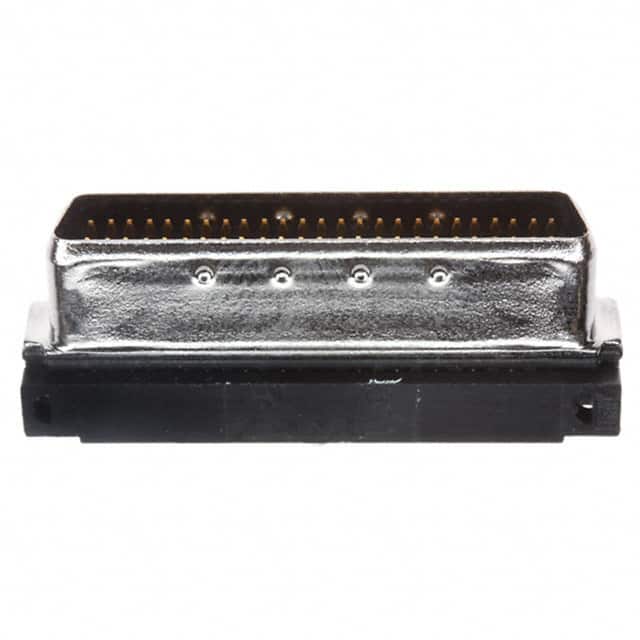

The TE Connectivity 749111-4 is a 50-position D-Type plug connector from the AMPLIMITE .050 III series. It features male pins and is terminated via IDC (Insulation Displacement Connection) to ribbon cable, making it suitable for high-density parallel data transmission applications.
The connector has a 2-row configuration with a 0.050 inch pitch and 0.100 inch row-to-row spacing. It is rated for 1A current per contact and 30V voltage. The operating temperature range is -55°C to 105°C. The shell is made of steel with tin-nickel plating and the connector is shielded for EMI protection. Contacts are gold-plated phosphor bronze. The dielectric material is thermoplastic with a UL94 V-0 flammability rating.
Mounting type is free hanging (in-line), suitable for cable-to-board or cable-to-cable connections where a reliable, shielded D-Sub interface is required.
| Qty | Low | High |
|---|---|---|
| 104+ | $4.36 | $4.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 50 positions arranged in 2 rows.
The pitch is 0.050 inch and the row-to-row spacing is 0.100 inch.
The current rating is 1A and the voltage rating is 30V.
The mounting type is free hanging (in-line).
The operating temperature range is -55°C to 105°C.
Yes, the connector features a shielded steel shell with tin-nickel plating.
The contacts are gold-plated phosphor bronze.
