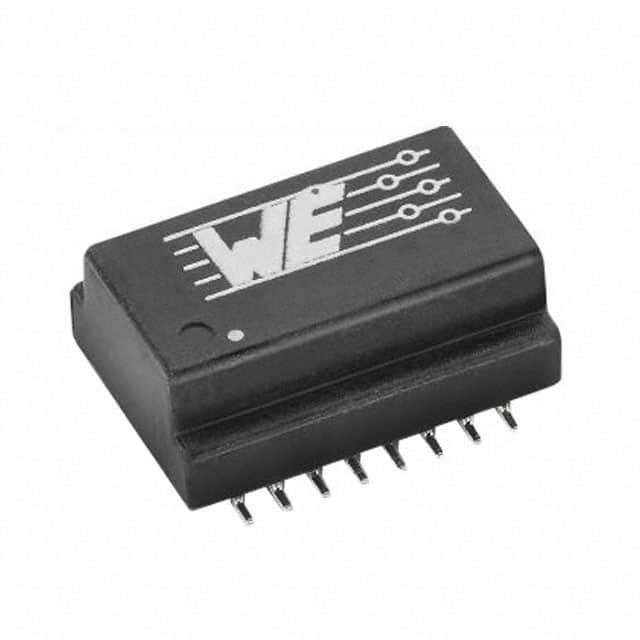

749010012A The Würth Elektronik 749010012A is a WE-LAN 10/100 Base-T LAN Transformer. It features SMT mounting and operates within a temperature range of 0°C to 70°C.
Mfr Part #:

749010012A

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 749010012A is a WE-LAN 10/100 Base-T LAN Transformer. It features SMT mounting and operates within a temperature range of 0°C to 70°C.
✓ Total Stock: 630 pcs
$ Price Range: $3.00

749010012A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

749010012A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Height
Inductance
Length
Mounting Type
Operating Temperature
Transformer Type
Turns Ratio
Width
View Similar Products (0)

749010012A Description

Short technical summary and product information.

This Würth Elektronik 749010012A is a WE-LAN 10/100 Base-T LAN Transformer designed for surface-mount applications. It offers an inductance of 350µH and a turns ratio of 1:1.



The transformer operates within a temperature range of 0°C to 70°C. Its mechanical dimensions include a height of 6.35mm and a width of 8.80mm, with a length of 12.70mm.



This component is suitable for networking applications requiring 10/100 Base-T Ethernet connectivity.

749010012A Quick Information

Product Type: LAN Transformer
Series: WE-LAN
Canonical Name: WE-LAN 10/100 Base-T LAN Transformer
Subcategory: Pulse Transformer

749010012A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

749010012A Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

749010012A Features

  • WE-LAN 10/100 Base-T transformer type.
  • Surface mount (SMT) package.
  • Inductance of 350µH.
  • Operating temperature from 0°C to 70°C.
  • 1:1 turns ratio.

749010012A Applications

  • Used in Ethernet LAN transceiver circuits
  • Suitable for network interface modules
  • Provides electrical isolation in data communication
  • Ideal for compact circuit designs

749010012A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the inductance of the 749010012A LAN Transformer?

The inductance is 350µH.

What is the operating temperature range for this LAN Transformer?

The operating temperature range is 0°C to 70°C.

What type of transformer is the 749010012A?

It is a LAN 10/100 Base-T transformer.

What are the dimensions of the 749010012A?

The dimensions are 12.70mm L x 8.80mm W x 6.35mm H.

What is the mounting type for the 749010012A?

The mounting type is SMT.
