| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Kit Type | |
| Mounting Type | |
| Quantity |

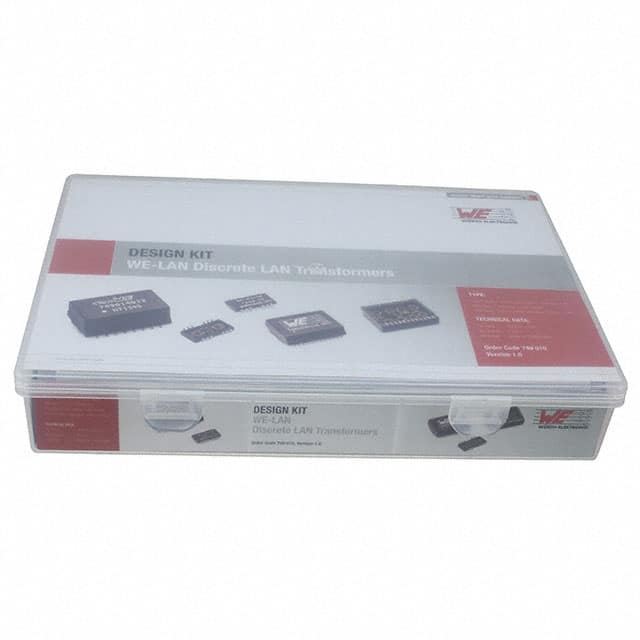

This Würth Elektronik WE-LAN LAN Transformer Design Kit, part number 749010, provides a comprehensive selection of components for developing LAN interfaces. The kit includes 75 individual components, representing 15 distinct values, allowing for diverse design possibilities. These components are designed for surface mount applications, facilitating integration into modern PCB layouts.
The kit is part of the WE-LAN series, indicating its focus on Local Area Network transformer solutions. While specific electrical parameters for individual transformers are not detailed here, the kit's purpose is to offer a variety of options for engineers working on network connectivity projects. The components are RoHS3 compliant and have a Moisture Sensitivity Level (MSL) of 1, signifying their suitability for standard manufacturing processes.
This design kit is an excellent resource for prototyping and testing various LAN transformer configurations. Its surface mount form factor aligns with current electronic design trends, enabling compact and efficient circuit construction. The inclusion of multiple values ensures flexibility in achieving desired signal integrity and impedance matching for network applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Würth Elektronik 749010 is a WE-LAN LAN Transformer Design Kit containing 75 components across 15 values for surface mount applications.
The components in the 749010 kit are RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for this design kit is 1 Unlimited.
The REACH status for the 749010 kit is REACH Unaffected.
