| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
112 pcs
|
112 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Dimensions | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Halogen Free | |
| Height (Max) | |
| Impedance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Power | |
| RF Family | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| VSWR |

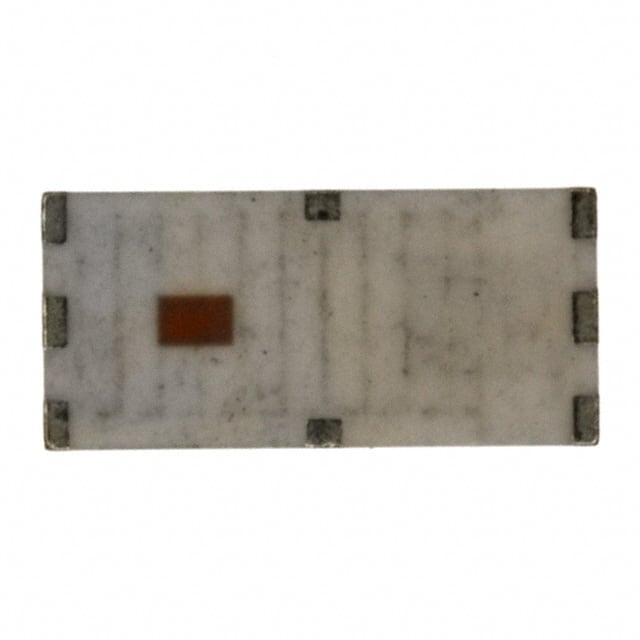

The Würth Elektronik 7488910092 is a multilayer chip antenna designed for RF applications. It operates within a frequency range of 868 to 960 MHz, with a center frequency of 900 MHz. This antenna features a typical impedance of 50 Ω and a maximum VSWR of 2.5.
The antenna has a peak gain of -0.7 dBi and is rated for 5 W of power. Its compact dimensions of 11 x 5.1 mm and a maximum height of 1.50mm make it suitable for space-constrained designs. The mounting type is surface mount with a solder termination.
Environmental compliance includes RoHS3 compliance, REACH conformance, and a Moisture Sensitivity Level (MSL) of 1. The operating temperature range is from -40 °C to +85 °C.
This component is suitable for applications including Bluetooth, GSM, and WLAN, and falls within the UHF frequency group.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 868 to 960 MHz.
The typical impedance is 50 Ω.
The maximum VSWR is 2.5.
The peak gain is -0.7 dBi.
The dimensions are 11 x 5.1 mm.
The operating temperature range is -40 °C up to +85 °C.
Yes, it is RoHS3 Compliant.
