| Category | |
| Manufacturer Name | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| ELV | |
| Flange Feature | |
| Halogen Free | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout |

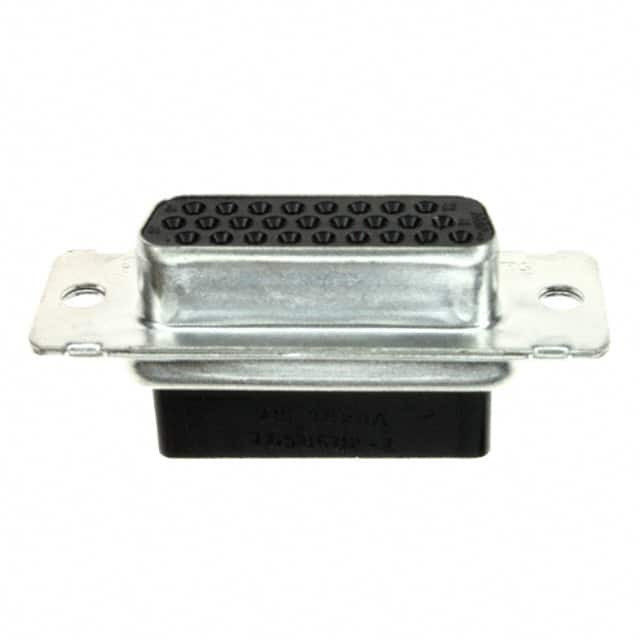

The TE Connectivity 748566-1 is a D-Sub high density receptacle housing designed for use with female crimp contacts. It features 26 positions arranged in 3 rows, providing a compact interconnect solution for signal applications. The housing has a shell size of 2 (DA, A) high density and is constructed with a steel shell that is tin plated for durability and conductivity. The flange feature is housing/shell (unthreaded), and the mounting type is free hanging (in-line), making it suitable for cable-to-cable or cable-to-panel connections where a secure, removable interface is needed. This housing is part of the AMPLIMITE HD-22 series and is intended for use with TE's HD-22 crimp snap contacts. It is not RoHS compliant and contains lead above the SVHC threshold.
26 positions.
Free hanging (in-line).
3 rows.
Steel, tin plated.
No, it is not compliant with EU RoHS Directive 2011/65/EU.
Receptacle for female contacts.
2 (DA, A) High Density.
