| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

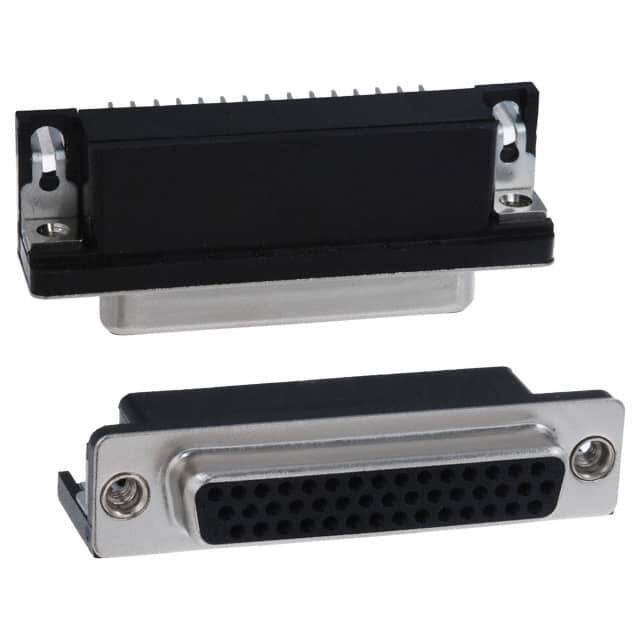

The TE Connectivity 748482-5 is a high density D-Sub receptacle connector designed for reliable signal interconnections. It features 44 female socket contacts arranged in 3 rows, with a shell size of 3 (DB, B) high density layout. The connector uses a through hole, right angle mounting style with solder termination, making it suitable for PCB applications where space is constrained.
Contacts are gold plated with a thickness of 30.0µin (0.76µm) for corrosion resistance and reliable signal integrity. The steel shell is nickel plated, and the connector includes a board lock feature for secure attachment to the PCB. The housing material has a UL94 V-0 flammability rating, ensuring compliance with fire safety standards.
This connector is rated for 2A per contact and is intended for signal-level applications. The flange feature uses a 4-40 threaded insert for mating with standard D-Sub hardware.
The connector has 44 positions arranged in 3 rows.
It is a through hole, right angle mounting connector with solder termination.
The current rating is 2A per contact.
The contacts are gold plated with a thickness of 30.0µin (0.76µm).
The part is listed as RoHS3 Compliant, though this is unverified.
