| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

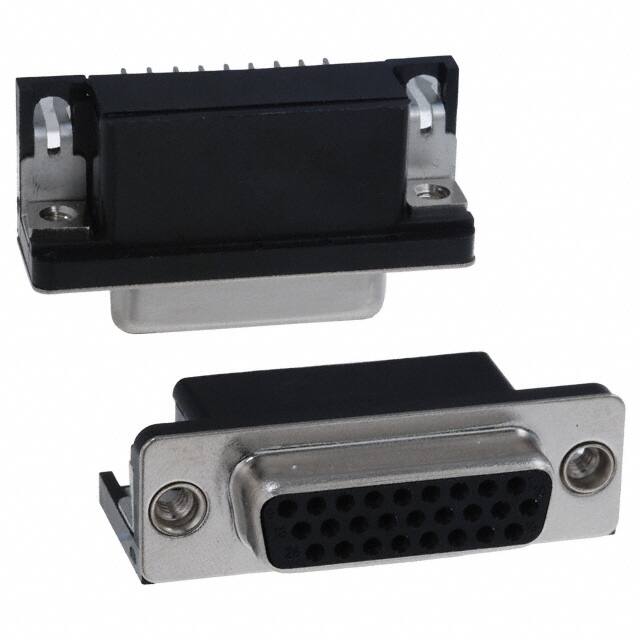

The TE Connectivity 748481-5 is a 26-position high density D-Sub receptacle with female sockets arranged in 3 rows. This connector is designed for through hole right angle mounting and uses solder termination for reliable PCB attachment.
The connector features gold plated contacts with a thickness of 30.0µin (0.76µm) for superior conductivity and corrosion resistance. The steel shell is nickel plated for durability and EMI shielding. A board lock feature secures the connector to the PCB during soldering.
The shell size is 2 (DA, A) high density with a housing/shell (4-40) flange feature for secure mating. The insulator material has a UL94 V-0 flammability rating. This receptacle is rated for a current of 2A per contact and is suitable for signal applications.
| Qty | Low | High |
|---|---|---|
| 800+ | $3.89 | $3.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The part number is 748481-5, manufactured by TE Connectivity.
It has 26 positions arranged in 3 rows.
It is through hole right angle mounting with solder termination.
The current rating is 2A per contact.
The contacts are gold plated with a thickness of 30.0µin (0.76µm).
The shell is made of steel with a nickel plated finish.
The housing material has a UL94 V-0 flammability rating.
