| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
221 pcs
|
221 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

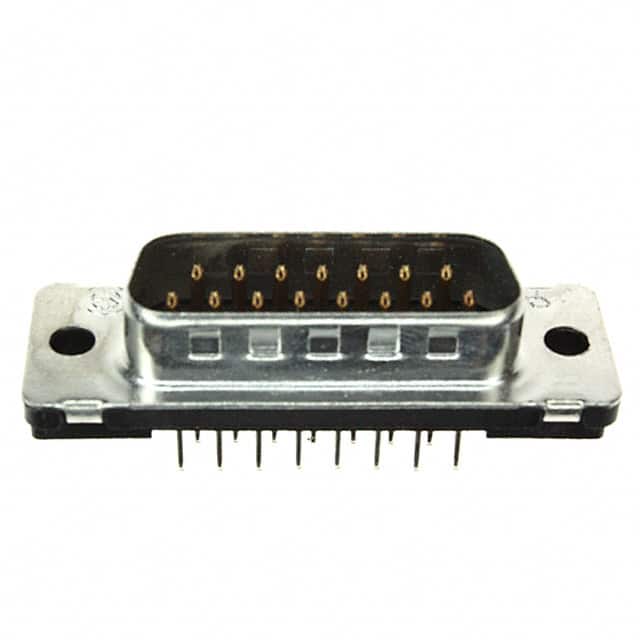

The TE Connectivity 747872-4 is a D-Sub plug connector featuring 15 male pin contacts arranged in 2 rows. It uses a DA-15 shell size (layout 2) and is designed for through hole mounting with solder termination. The connector includes a housing/shell unthreaded flange feature and grounding indents for improved EMI performance.
The contacts are gold plated for reliable signal transmission, and the steel shell is tin plated for corrosion resistance. The insulator is rated UL94 V-0 for flammability. This connector is rated for 6A current per contact and is suitable for signal applications in industrial, computing, and telecommunications equipment.
The part is packaged for through hole assembly and is RoHS3 compliant (unverified). It is commonly used in applications requiring a standard 15-pin D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.43 | $12.43 |
| 10+ | $11.02 | $11.02 |
| 26+ | $10.59 | $10.59 |
| 52+ | $10.17 | $10.17 |
| 104+ | $9.60 | $9.60 |
| 260+ | $8.76 | $8.76 |
| 507+ | $8.19 | $8.19 |
| 1,001+ | $8.00 | $8.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Male Pins
15 positions
Through Hole
6A
Gold
