| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

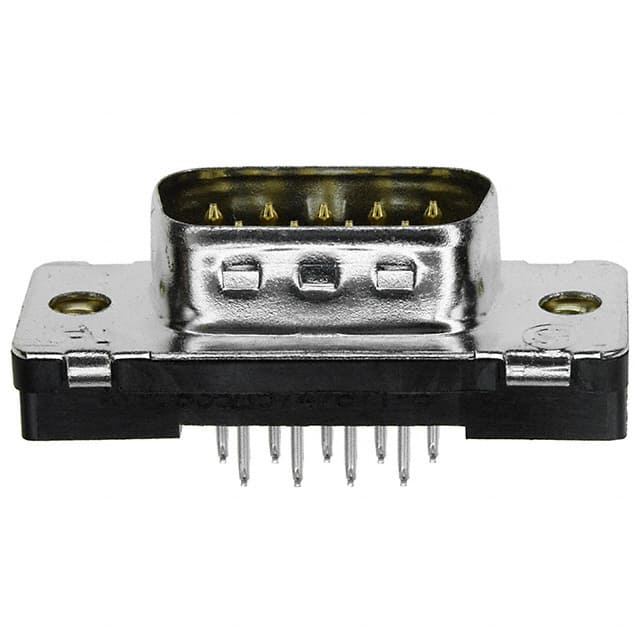

The 747871-8 is a 9-position D-Sub plug connector from TE Connectivity. It features male pins in a 2-row configuration with through hole mounting and solder termination for reliable PCB attachment. The signal contacts are gold-plated for corrosion resistance and reliable low-level signal transmission. The steel shell is tin-plated and includes grounding indents for improved EMI shielding.
Rated for 6A current, this connector is suitable for a variety of signal interconnection applications. The shell size is 1 (DE, E) with a housing/shell flange feature (4-40) for secure mating. The insulator material is rated UL94 V-0 for flammability, and the part is wave solder capable to 265°C per manufacturer datasheet.
This component is not RoHS compliant and contains lead (up to 4% in copper alloy) and is not low halogen. It is REACH compliant with SVHC declaration for lead. The part is suited for industrial, data communication, and peripheral interface designs where leaded solder processes are acceptable.
9 positions.
6 A.
Through hole.
Gold.
Steel, Tin Plated.
No, it is not compliant with EU RoHS Directive 2011/65/EU.
UL94 V-0.
