| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
151 pcs
|
151 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

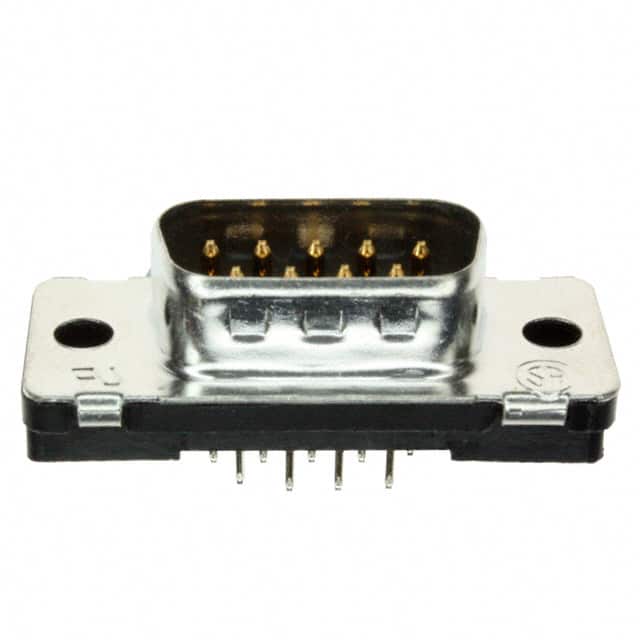

The TE Connectivity 747871-2 is a 9-position D-Sub plug connector with male pins arranged in 2 rows. It features gold-plated signal contacts rated for 6A current, making it suitable for standard signal interconnection applications. The connector uses a DE (E) shell size and includes grounding indents for improved EMI performance.
The connector is designed for through-hole mounting with solder termination, providing a reliable mechanical and electrical connection to the PCB. The steel shell is tin-plated for durability and corrosion resistance. The housing material meets UL94 V-0 flammability rating, ensuring suitability for a wide range of electronic equipment.
This D-Sub connector is commonly used in industrial control systems, data communication equipment, and test instrumentation where reliable signal transmission is required. The unthreaded housing/shell flange feature allows for straightforward panel mounting or board-to-board connections.
With its compact 9-position layout and robust construction, this connector offers a practical solution for applications requiring a standard D-Sub interface with through-hole soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.56 | $7.56 |
| 10+ | $6.20 | $6.20 |
| 17+ | $5.89 | $5.89 |
| 51+ | $5.73 | $5.73 |
| 102+ | $5.45 | $5.45 |
| 255+ | $5.11 | $5.11 |
| 510+ | $4.37 | $4.37 |
| 1,003+ | $4.28 | $4.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 9 positions arranged in 2 rows.
The current rating is 6 A per contact.
It uses through-hole mounting with solder termination.
The contacts have a gold finish.
The shell size is 1 (DE, E) with a D-Sub style.
The housing material has a UL94 V-0 flammability rating.
