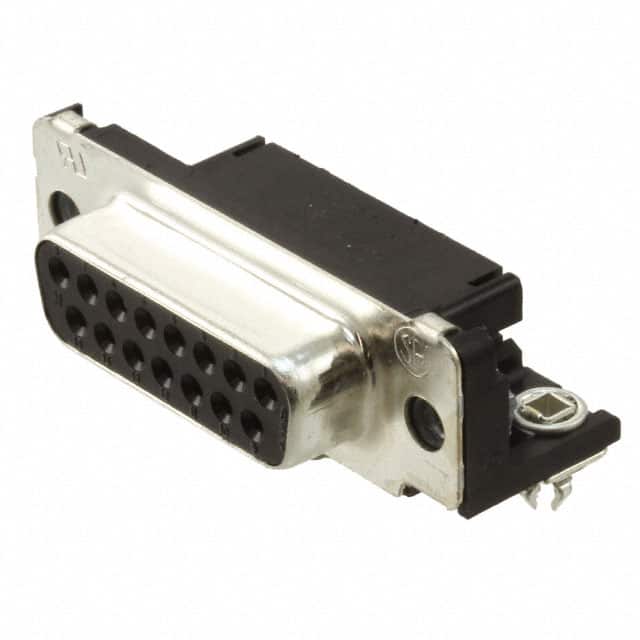

The TE Connectivity 747845-4 is a 15-position D-Sub receptacle designed for board-to-board applications. It features a right-angle through-hole mounting style with solder termination. The connector has 2 rows with a centerline pitch of 2.74 mm and row-to-row spacing of 2.84 mm. The contacts are made of phosphor bronze with gold plating on the mating area (30 µin) and tin-lead plating on the termination area. The shell is steel with tin plating, and the housing is black thermoplastic with UL94 V-0 flammability rating. The connector includes board locks and a ground strap for enhanced mechanical retention and grounding. It is shielded and grounded, making it suitable for EMI-sensitive applications. The operating temperature range is -55°C to 105°C. The backset spacing is 0.318 inches (8.08 mm). The connector is preloaded and features threaded inserts (4-40 UNC) for mating retention. This part is part of the AMPLIMITE series from TE Connectivity.
15 positions.
2.74 mm.
6A maximum.
Through Hole, Right Angle.
Shell size 2 (DA, A).
-55°C to 105°C.
Yes, it is shielded and grounded.
