| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
650 pcs
|
650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| EU ELV | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Solder Process Capability | |
| Termination | |
| Termination Style |

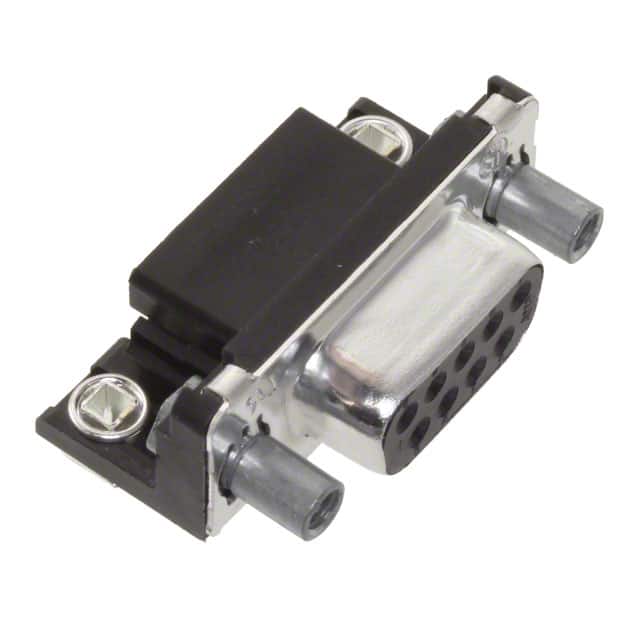

The TE Connectivity 747844-6 is a 9-position D-Sub receptacle (female) connector designed for through hole, right angle mounting. It features a steel shell with tin plating and gold plated signal contacts with a thickness of 30.0 µin (0.76 µm). The connector includes a board lock feature for secure attachment to the PCB and a mating side female screwlock (4-40) flange for reliable mating.
This connector is rated for 6 A current and has a backset spacing of 0.318 in (8.08 mm). The insulator material has a flammability rating of UL94 V-0. The part is wave solder capable to 265°C.
This component is not EU RoHS compliant due to lead content, but is compliant with EU ELV Directive with exemptions. It contains SVHC above threshold (Pb at 13%) and is not low halogen.
Receptacle, Female Sockets; D-Sub style.
9 positions in 2 rows.
Through hole, right angle.
6 A.
Gold, 30.0 µin (0.76 µm) thickness.
UL94 V-0.
