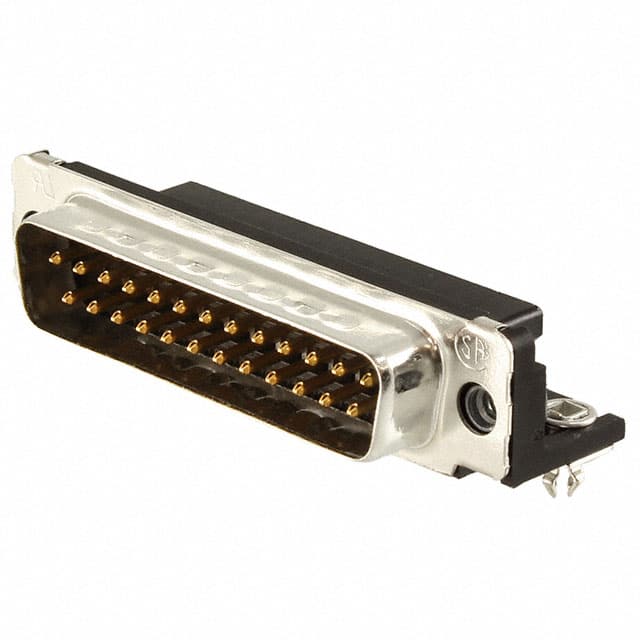

747842-4 D-Sub plug with 25 male pins, right angle through-hole mounting, solder termination. Rated for 6A with gold-plated contacts.
Mfr Part #:

747842-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub plug with 25 male pins, right angle through-hole mounting, solder termination. Rated for 6A with gold-plated contacts.
✓ Total Stock: 45 pcs
$ Price Range: $6.68

747842-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

747842-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Backset Spacing
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating (Amps)
Features
Flange Feature
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

747842-4 Description

Short technical summary and product information.

The TE Connectivity 747842-4 is a D-Sub plug connector with 25 male pins arranged in 2 rows. It features a right-angle through-hole mounting style with solder termination for reliable PCB attachment. The contacts are gold-plated for corrosion resistance and rated for 6A current. The connector has a steel shell with tin plating and includes board locks, ground strap, and grounding indents for secure mounting and EMI protection. The flange feature uses 4-40 threaded inserts. The insulator material has a UL94 V-0 flammability rating. This connector is RoHS3 compliant, MSL 1, and REACH unaffected. It is suitable for applications requiring a standard DB-25 interface with right-angle orientation.

747842-4 Quick Information

Product Type: D-Sub Connector Assembly
Canonical Name: D-Sub Plug, Male Pins, 25 Position, Through Hole, Right Angle, Solder
Subcategory: D-Sub Connector Assemblies

747842-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

747842-4 Estimated Pricing

Qty Low High
1+ $6.68 $6.68

Estimated market price range - modelled values for guidance only, not live distributor offers.

747842-4 Features

  • 25 male pins in 2 rows.
  • Right-angle through-hole mounting.
  • Gold-plated contacts rated for 6A.
  • Steel shell with tin plating.
  • Includes board lock and grounding features.

747842-4 Applications

  • Used in computer and peripheral connections.
  • Suitable for industrial control interfaces.
  • Ideal for data communication equipment.
  • Common in test and measurement devices.

747842-4 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 747842-4 have?

25 positions.

What is the current rating?

6A.

What is the mounting type?

Through Hole, Right Angle.

What is the contact finish?

Gold.

What is the shell material?

Steel, Tin Plated.

What features does this connector have?

Board Lock, Ground Strap, Grounding Indents.

What is the flammability rating?

UL94 V-0.
