| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

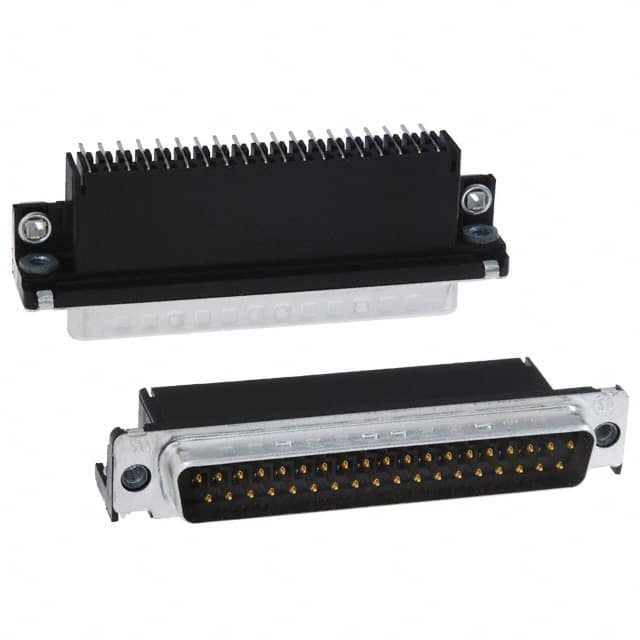

The TE Connectivity 747835-4 is a D-Sub connector plug with 37 male pin contacts arranged in 2 rows. It features a through hole right angle mounting style with solder termination, making it suitable for PCB applications where space constraints require a right-angle orientation. The connector has a steel shell with tin plating, and includes board locks, ground strap, and grounding indents for secure attachment and EMI shielding. The contacts are gold plated with a thickness of 30 microinches (0.76 µm), ensuring reliable signal transmission. The connector is rated for 6A current and has a UL94 V-0 flammability rating for the insulator material. The shell size is 4 (DC, C) and the backset spacing is 14.99 mm. This connector is RoHS compliant and REACH unaffected, with MSL 1.
37 positions.
6A.
Through hole, right angle.
Gold, 30 microinches (0.76 µm).
Steel, tin plated.
UL94 V-0.
14.99 mm (0.590 inches).
