| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

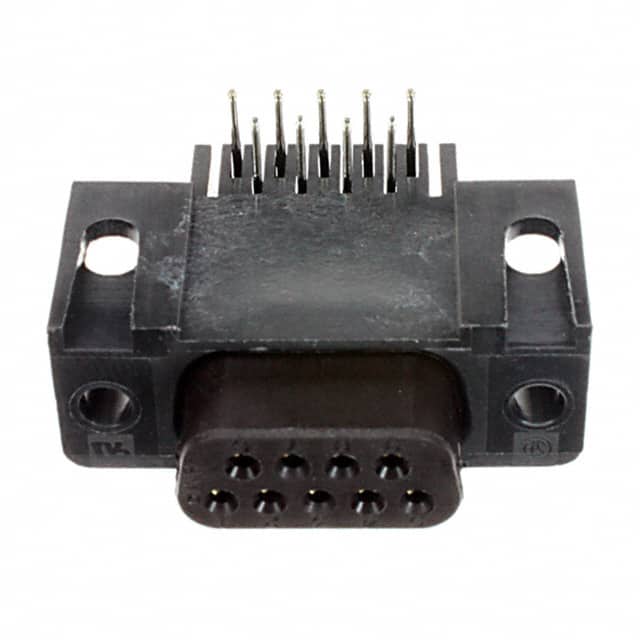

The TE Connectivity 747459-2 is a 9-position D-Sub receptacle connector with female sockets arranged in 2 rows. It features a right angle through hole mounting style with solder termination, making it suitable for PCB applications where space is constrained. The connector uses a shell size of 1 (DE, E) and includes a housing/shell unthreaded flange feature.
Electrically, the connector is rated for 6A continuous current per contact. The contacts are signal type with a gold finish of 30µin (0.76µm) thickness for reliable low-level signal connections. The insulator material has a UL94 V-0 flammability rating, indicating good flame retardant properties.
The backset spacing is 0.590" (14.99mm), which defines the distance from the mounting surface to the rear of the connector. This connector is designed for through hole mounting and is commonly used in data communication, industrial control, and computer peripheral applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.26 | $7.26 |
| 10+ | $6.17 | $6.17 |
| 25+ | $5.78 | $5.78 |
| 50+ | $5.50 | $5.50 |
| 140+ | $5.12 | $5.12 |
| 280+ | $4.87 | $4.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
6A per contact.
Through hole, right angle.
Gold, 30µin (0.76µm) thickness.
1 (DE, E).
UL94 V-0.
0.590" (14.99mm).
