| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

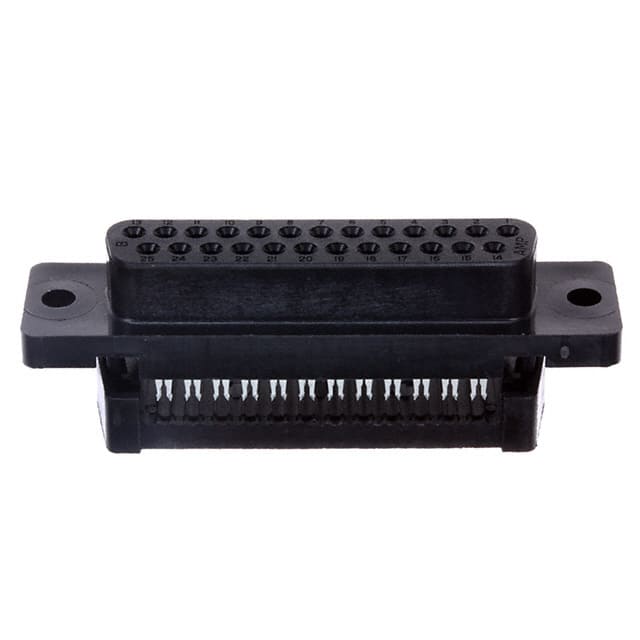

The TE Connectivity 747318-2 is a D-Sub receptacle connector designed for signal applications. It features 25 positions arranged in 2 rows, with female socket contacts. The connector uses IDC (Insulation Displacement Contact) termination for ribbon cable, simplifying mass termination. It is free hanging (in-line) mounted, eliminating the need for additional mounting hardware. The shell size is 3 (DB, B) and is made of steel. Contacts are gold plated with a thickness of 30 µin (0.76 µm), ensuring reliable connections. The connector is rated for 1.25 A current and has a feed through feature. The housing material has a flammability rating of UL94 V-0. This connector is suitable for internal wiring and cable-to-cable connections in data communication, industrial control, and computer peripheral equipment.
25 positions.
1.25 A.
Free hanging (in-line) mounting.
IDC termination for ribbon cable.
Gold plating with 30 µin thickness.
Shell size 3 (DB, B).
RoHS3 compliant (unverified).
