| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination |

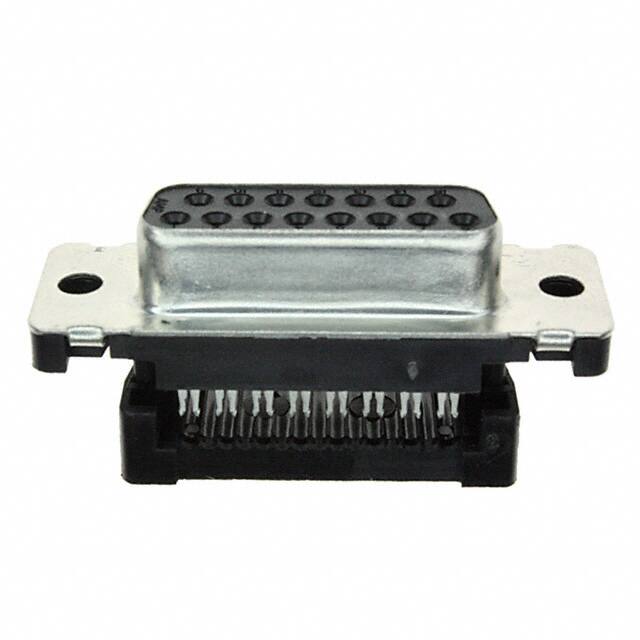

The TE Connectivity 747303-3 is a D-Sub receptacle connector featuring 15 female signal contacts arranged in 2 rows. It uses IDC (Insulation Displacement Contact) termination for ribbon cable, simplifying assembly in cable harness applications. The connector is designed for free hanging (in-line) mounting and has a shell size of 2 (DA, A), with a steel shell finished in tin plating for durability and EMI shielding. The housing carries a UL94 V-0 flammability rating, ensuring safety in various environments. Contacts are gold-plated with a thickness of 30 microinches (0.76 micrometers), providing reliable low-resistance connections. The connector is rated for a current of 1.25A per contact and includes a feed-through feature for pass-through wiring. The flange feature is housing/shell (unthreaded), suitable for applications where screw locking is not required. This connector is compliant with RoHS3 (unverified), MSL 1 (unlimited), and REACH (unaffected). It is commonly used in computer peripherals, data communication equipment, and industrial control systems where ribbon cable interfacing is needed.
15 positions.
1.25A per contact.
Free hanging (in-line).
IDC for ribbon cable.
Gold with 30 microinches (0.76 micrometers) thickness.
Shell size 2 (DA, A).
UL94 V-0.
