| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | 1302 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

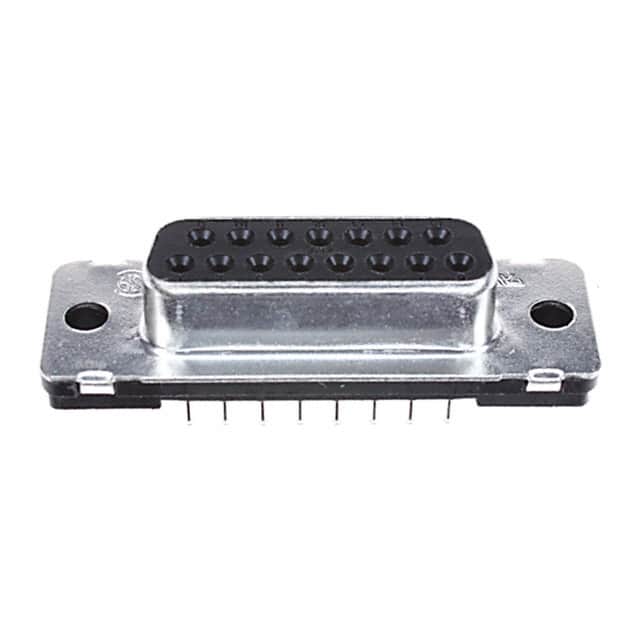

The TE Connectivity 747299-2 is a D-Sub receptacle connector designed for reliable signal connections. It has 15 positions with female socket contacts arranged in 2 rows, making it suitable for a variety of data and control applications. The contacts are gold-plated with a thickness of 30.0µin (0.76µm), ensuring excellent conductivity and corrosion resistance. Each contact is rated for 6A continuous current, supporting moderate power requirements.
The connector uses a through hole mounting style with solder termination, providing a secure mechanical and electrical connection to the PCB. The shell is made of steel with a tin plating, offering durability and EMI shielding. The insulator material has a UL94 V-0 flammability rating, indicating good flame retardancy. The shell size is 2 (DA, A), which corresponds to the standard 15-pin D-Sub layout.
This connector is typically used in computer peripherals, industrial equipment, and communication interfaces where a robust D-Sub connection is required. The unthreaded flange feature allows for simple panel mounting without additional hardware. The part is marked as RoHS Compliant, although this status is unverified, and it is REACH unaffected with MSL Level 1 unlimited.
The 747299-2 has 15 positions (contacts).
The current rating is 6A per contact.
The connector mounts via through hole with solder termination.
The contacts are gold-plated with a thickness of 30.0µin (0.76µm).
The shell size is 2 (DA, A).
It is listed as RoHS3 Compliant, but this status is unverified.
The insulator material has a UL94 V-0 flammability rating.
