| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
196 pcs
|
196 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

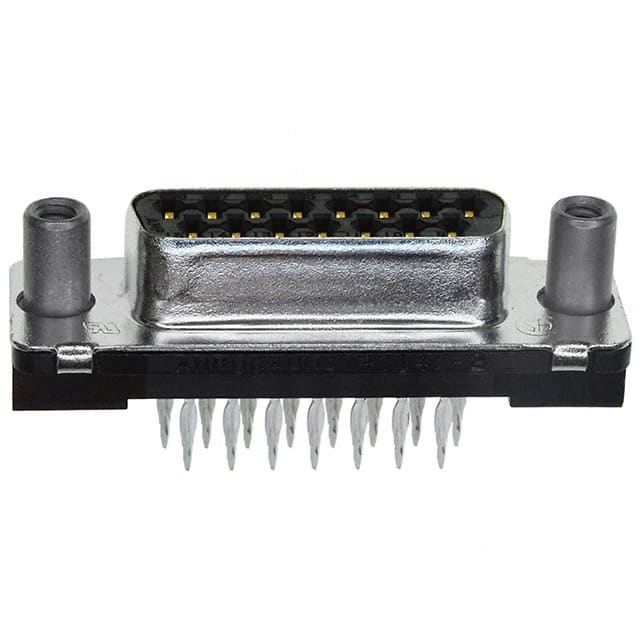

The TE Connectivity 747142-2 is a D-Sub connector assembly designed as a receptacle with female sockets. It accommodates 15 signal contacts arranged in 2 rows, with a shell size of 2 (DA, A). The connector features a through-hole mounting style with press-fit termination, ensuring reliable board-to-cable connections. The contacts are finished with gold for corrosion resistance and reliable signal transmission. The shell is made of steel with tin plating, providing durability and EMI shielding. The connector includes a flange feature with mating side female screwlock (4-40) for secure mating. It is rated UL94 V-0 for flammability, suitable for use in environments requiring flame retardant materials. The part is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). This connector is ideal for applications requiring a robust D-Sub interface with press-fit termination for high-density connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.99 | $33.99 |
| 10+ | $23.96 | $23.96 |
| 25+ | $22.56 | $22.56 |
| 50+ | $21.50 | $21.50 |
| 104+ | $17.69 | $17.69 |
| 208+ | $17.68 | $17.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 15 positions.
Through hole mounting with press-fit termination.
D-Sub.
Gold.
Steel with tin plating.
UL94 V-0.
Yes, mating side female screwlock (4-40).
