| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
109 pcs
|
109 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material and Finish | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

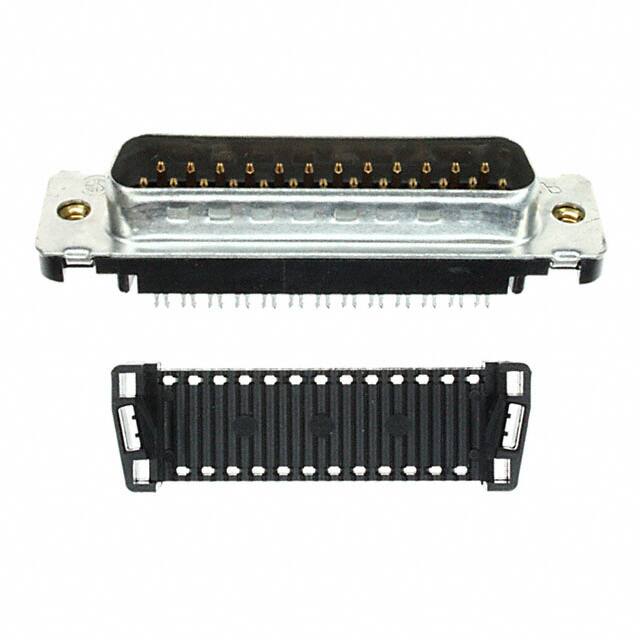

The TE Connectivity 747043-2 is a D-Sub connector assembly designed for signal interconnect applications. It is a plug with 25 male pins arranged in 2 rows, featuring gold contacts with a thickness of 0.76 µm for reliable signal integrity. The connector uses IDC (Insulation Displacement Connection) termination, ideal for ribbon cable connections.
This connector is rated for 1.25 A per contact and has a shell size of 3 (DB, B) with steel and tin-plated finish. The flange feature is housing/shell (4-40), and the mounting type is free hanging (in-line) for flexible cable assembly. Additional mechanical features include feed through and grounding indents.
The shell material is steel with tin plating, and the connector meets UL94 V-0 flammability rating. It is designed for use in various data and signal transmission systems where a compact and durable D-Sub interface is required.
It has 25 positions arranged in 2 rows.
The current rating is 1.25 A per contact.
It is a free hanging (in-line) mounting connector.
It uses IDC (Insulation Displacement Connection) for ribbon cable.
The shell is made of steel with a tin-plated finish.
