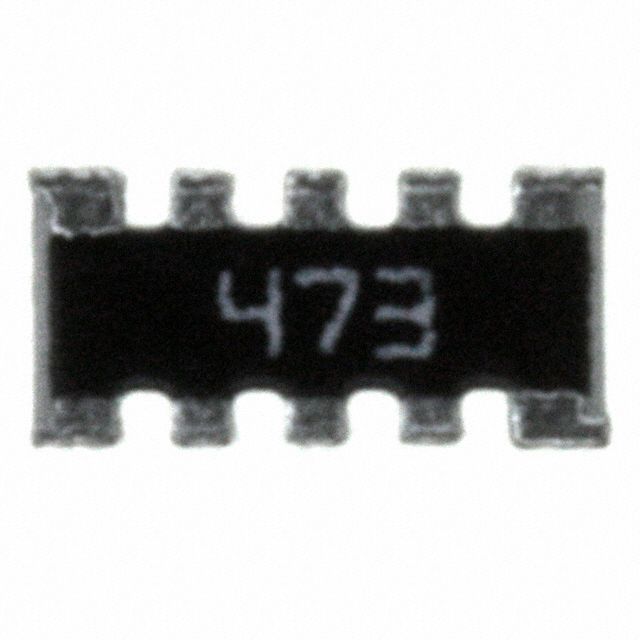

746X101473JP The CTS Corporation 746X101473JP is a resistor array with 8 elements, offering 47k Ohms resistance and a ±5% tolerance. It is designed for surface mount applications.
Mfr Part #:

746X101473JP

Available from 1 distributors
Mfr Name: CTS Resistor Products
CTS Resistor Products
The CTS Corporation 746X101473JP is a resistor array with 8 elements, offering 47k Ohms resistance and a ±5% tolerance. It is designed for surface mount applications.
✓ Total Stock: 17,909 pcs
$ Price Range: $0.05

746X101473JP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
17,909 pcs
On Request
17909 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

746X101473JP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC-Q200 Compliant
Applications
Circuit Type
Height
Length
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance (Ohms)
Storage Temperature
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

746X101473JP Description

Short technical summary and product information.

The CTS Corporation 746X101473JP is a resistor array featuring thick film technology and leadless surface mount construction. This component contains 8 homogeneous resistor elements, providing a resistance value of 47k Ohms with a tolerance of ±5%. It is suitable for bussed circuit configurations and operates within a temperature range of -55°C to 125°C.



The array is housed in a 1206 (3216 Metric) package with convex, long side terminals, designed for surface mounting. Its dimensions are 3.20mm (0.126") in length and 1.60mm (0.063") in width, with a height of 0.70mm (0.028"). The power per element is rated at 31mW, and it has a temperature coefficient of ±200ppm/°C.



Applications for this resistor array include DDR SDRAM, MDDR, and DRAM systems, as well as data communications, image processing, medical equipment, and networking. Its integrated array design offers improved TCR tracking compared to discrete resistors and reduces placement costs by lowering component count.

746X101473JP Quick Information

Product Type: Resistor Array
Canonical Name: CTS Corporation 746X101473JP Resistor Array
Subcategory: Array

746X101473JP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

746X101473JP Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

746X101473JP Features

  • Contains 8 resistors of 47k Ohms each
  • Surface mount 1206 package
  • Bussed circuit configuration
  • Operates from -55°C to 125°C
  • AEC-Q200 compliant

746X101473JP Applications

  • Suitable for resistor array applications in circuits.
  • Used in data communication and networking equipment.
  • Ideal for low-profile high-density electronic designs.
  • Applicable in medical and image processing devices.
  • Suitable for pull-up and pull-down logic gate configurations.

746X101473JP FAQs

4 frequently asked questions generated from this part’s specifications.
What is the resistance value of each resistor in the array?

Each resistor has a resistance of 47k Ohms.

What is the tolerance of the resistors?

The resistors have a tolerance of ±5%.

What is the package size of this resistor array?

The package size is 1206 (3216 metric).

Is this resistor array compliant with automotive standards?

Yes, it is AEC-Q200 compliant.
