| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,877 pcs
|
3877 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

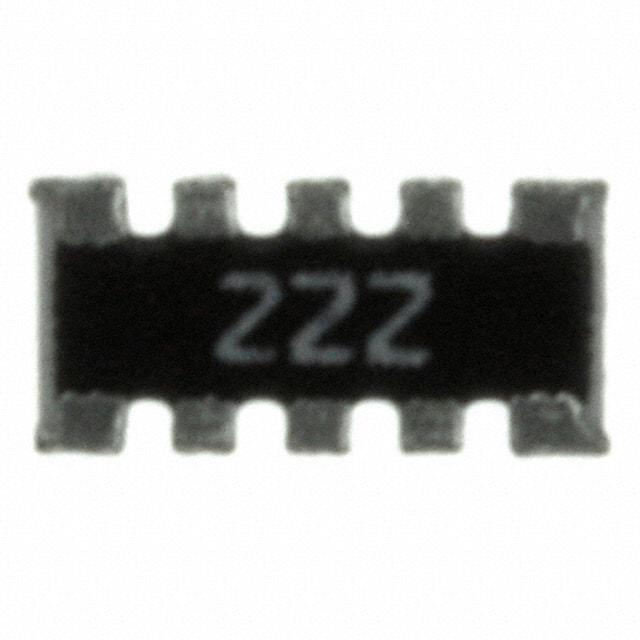

This CTS Resistor Products 746X101222J is a resistor array belonging to the 74x series. It features 8 individual resistors, each with a resistance value of 2.2k Ohms and a tolerance of ±5%. The array is constructed using thick film technology and is housed in a 1206 (3216 Metric) package with convex, long side terminals.
Designed for surface mounting, this component has a low profile, measuring 3.20mm in length, 1.60mm in width, and 0.70mm in height. It operates within a temperature range of -55°C to 125°C and has a temperature coefficient of ±200ppm/°C. Each resistor element is rated for 31mW of power. The circuit type is bussed, and it has 10 pins in total.
This resistor array is suitable for applications such as DDR SDRAM, DRAM, and MDDR. It is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 2.2k Ohms.
The tolerance is ±5%.
There are 8 resistors in this array.
The package is 1206 (3216 Metric) with convex, long side terminals.
The operating temperature range is -55°C to 125°C.
It is designed for DDR SDRAM, DRAM, and MDDR applications.
