| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
170 pcs
|
170 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Height | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature (Minimum/Maximum) | |
| Outer Diameter | |
| Outer Thread Length | |
| Packaging Type | |
| SVHC Present | |
| Screw Size | |
| Solder Paste Thickness | |
| Surface Finish | |
| Terminal Type | |
| Termination | |
| Tightening Torque |

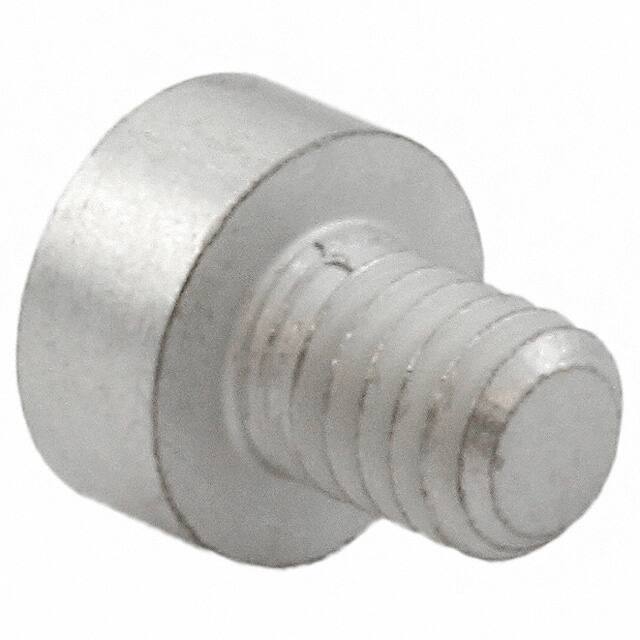

The Würth Elektronik 7466114 is a REDCUBE SMT screw terminal from the WP-SMSH series, designed for high-current surface mount applications. It features an M4 external thread and a single shank terminal, rated for 50A continuous current. The terminal is constructed from brass with a tin surface finish, ensuring reliable conductivity and corrosion resistance.
Key electrical and mechanical specifications include a rated current of 50A, a tightening torque of 1.2 N·m, and an operating temperature range of -55°C to +150°C. The part measures 8mm in height with a 7mm outer diameter and an outer thread length of 5mm. The solder paste thickness is specified as 150µm, and the terminal is suitable for SMD mounting with a recommended land pattern provided in the datasheet.
REDCUBE SMT terminals combine the advantages of surface mount technology with high current capability, enabling fully automated assembly from reel or bulk packaging. The component is classified as MSL Level 1 (unlimited floor life) and is RoHS3 and REACH compliant per manufacturer claims. The datasheet also includes a stencil suggestion for optimal solder joint formation.
This terminal is suitable for use in general electronic equipment where high current density and automated SMT assembly are required. It is not authorized for safety-critical applications without specific agreement with Würth Elektronik.
The rated current is 50 A.
Surface Mount (SMD) with a shank terminal.
It has 1 pin.
From -55°C to +150°C.
Brass with a tin surface finish.
1.2 N·m.
Both Bulk and Tape and Reel packaging are available.
