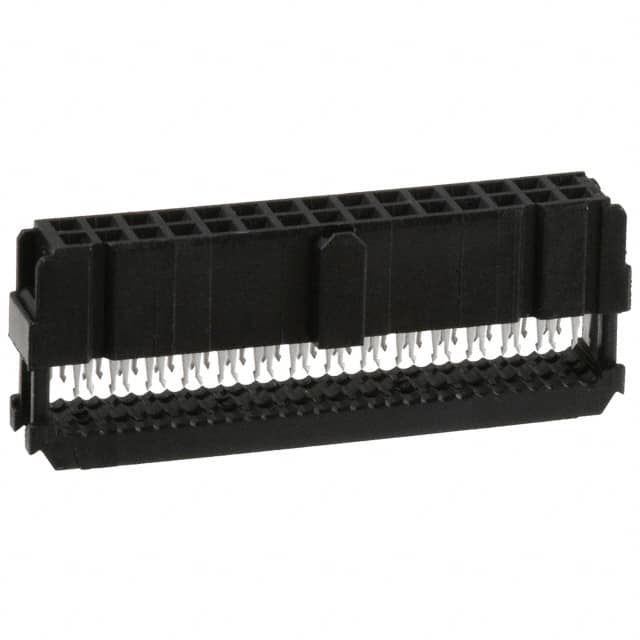

746285-7 30 position IDC receptacle from TE Connectivity with 2.54mm pitch, gold contacts, and free hanging mounting. Designed for 26-28 AWG ribbon cable.
Mfr Part #:

746285-7

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
30 position IDC receptacle from TE Connectivity with 2.54mm pitch, gold contacts, and free hanging mounting. Designed for 26-28 AWG ribbon cable.
✓ Total Stock: 90 pcs
$ Price Range: $1.61

746285-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

746285-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Features
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
Row Spacing
Termination Style
Wire Gauge
Wire Type
View Similar Products (0)

746285-7 Description

Short technical summary and product information.

The TE Connectivity 746285-7 is a 30-position rectangular connector receptacle designed for IDC termination to ribbon cable. It features a 2.54mm (0.100") pitch with two rows and a row spacing of 0.100" (2.54mm). The contacts are forked type with a gold finish of 15.0µin (0.38µm), ensuring reliable signal integrity. The connector is free hanging (in-line) mounted and accepts 26-28 AWG wire. It includes feed through and polarizing key features for correct orientation. The housing is black. This connector is suitable for internal wiring applications where parallel data transmission is required.

746285-7 Quick Information

Product Type: Rectangular Connector - IDC Receptacle
Canonical Name: 30 Position 2.54mm Pitch IDC Receptacle, Forked Contacts, Gold, Free Hanging
Subcategory: IDC Receptacle

746285-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

746285-7 Estimated Pricing

Qty Low High
600+ $1.61 $1.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

746285-7 Features

  • 30 position IDC receptacle connector.
  • 2.54mm pitch with 2 rows.
  • Gold plated forked contacts.
  • Free hanging in-line mounting.
  • Designed for 26-28 AWG ribbon cable.

746285-7 Applications

  • Connects ribbon cables in electronic assemblies.
  • Used for parallel data transmission.
  • Ideal for free hanging cable harnesses.

746285-7 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 746285-7 have?

30 positions.

What is the pitch of the 746285-7?

2.54mm (0.100").

What is the mounting type?

Free hanging (in-line).

What wire gauge is supported?

26-28 AWG.

What is the contact finish?

Gold, 15.0µin (0.38µm).

What termination method does it use?

IDC (Insulation Displacement Connection).

What color is the connector?

Black.
