| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
209 pcs
|
209 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Halogen Free | |
| Insertion Force | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature Range | |
| PCB Thickness | |
| Packaging Type | |
| Screw Size | |
| Storage Conditions | |
| Surface Finish | |
| Terminal Type | |
| Termination | |
| Tightening Torque |

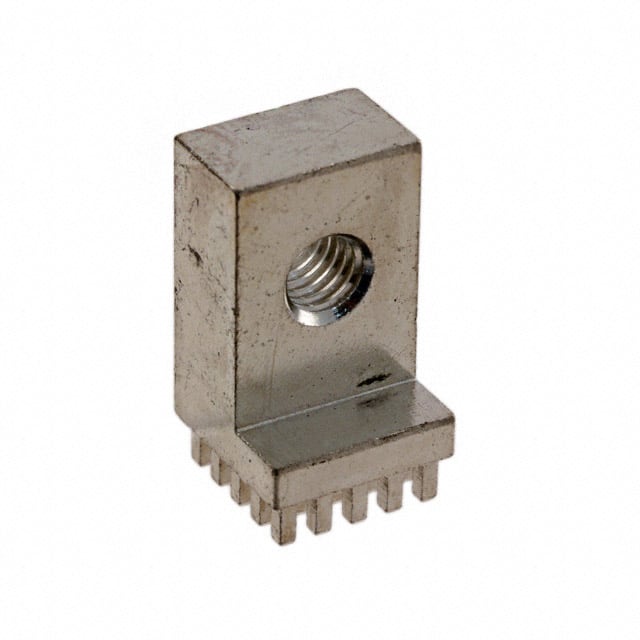

The 7461114 is a high-current terminal from Würth Elektronik's REDCUBE PRESS-FIT series. It is rated for 250A and features an M6 screw terminal with a tightening torque of 3.9 N·m. The component has 25 pins and uses a press-fit termination for through-hole, right-angle mounting on PCBs. The brass body is finished with tin for corrosion resistance. Operating temperature range is -55°C to +150°C. Insertion force is 40 N per pin (minimum) and extraction force is 30 N per pin (minimum, 24 hours after press-fit). PCB thickness should be between 1.6 mm and 3.2 mm. The terminal is compliant with RoHS (2011/65/EU&2015/863), REACH (EC 1907/2006), and halogen-free standards (JEDEC JS709B, IEC 61249-2-21). MSL is 1 (unlimited). Packaging is bulk. This terminal is suitable for high-current wire-to-board and board-to-board connections, as well as angled electrical connections for cables or PCBs in demanding environments.
250 A.
Through Hole, Right Angle.
25 pins.
M6.
-55°C to +150°C.
Press-Fit.
Yes, compliant with 2011/65/EU&2015/863.
