| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Halogen Free | |
| Insertion Force | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature Range | |
| PCB Thickness Range | |
| Packaging Type | |
| Rated Current | |
| SVHC Present | |
| Surface Finish | |
| Terminal Type | |
| Termination | |
| Termination Style |

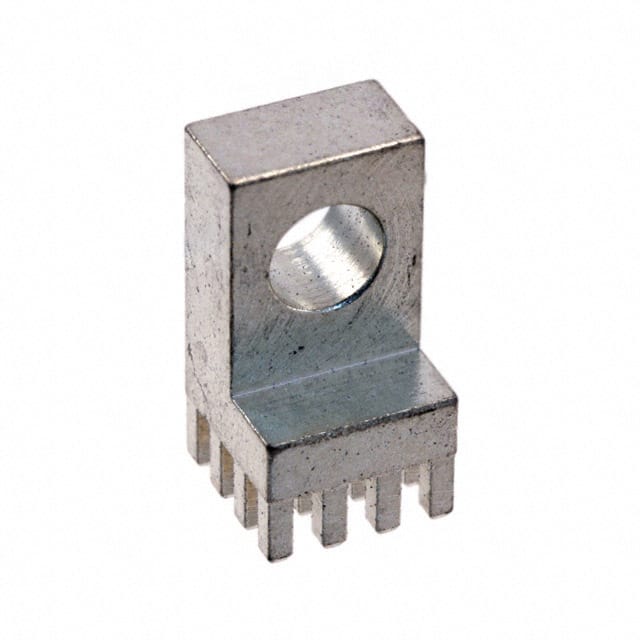

The Würth Elektronik 7461113 is a WP-RAFU REDCUBE Press-Fit screw terminal designed for high-current wire-to-board and board-to-board connections. It is rated for 180 A continuous current and features a screw terminal with power tap configuration. The terminal is made of brass with a tin surface finish and uses a press-fit termination for reliable connection without soldering.
Key electrical and mechanical specifications include an operating temperature range of -55 °C to +150 °C, insertion force of 40 N per pin minimum, and extraction force of 30 N per pin minimum after 24 hours. The terminal is suitable for PCB thicknesses from 1.6 mm to 3.2 mm and supports through-hole, right-angle mounting. It is packaged in bulk.
The 7461113 is compliant with RoHS, REACH, and halogen-free standards (JEDEC JS709B, IEC 61249-2-21) and has a moisture sensitivity level of 1. It is designed for use in rough environmental conditions and is suitable for applications requiring high current and angled connections.
The rated current is 180 A.
Through Hole, Right Angle.
-55 °C to +150 °C.
Minimum 40 N per pin.
Brass with a tin surface finish.
1.6 mm to 3.2 mm.
Yes, compliant with 2011/65/EU & 2015/863.
