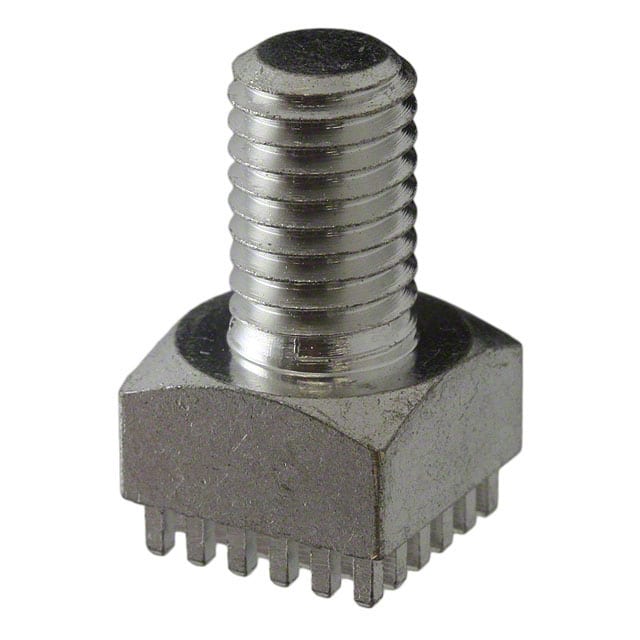

The 7461100 is a REDCUBE PRESS-FIT screw terminal from Würth Elektronik, part of the WP-SHFU series. It offers a rated current of 350 A maximum at 20 °C (operating current depends on PCB, cable lug, and cross section of the cable). The terminal features an M10 external screw thread with a thread length of 16 mm, a width of 16 mm, and a height of 24 mm. It is constructed of brass with a tin surface finish.
Designed for press-fit (through hole) mounting, the terminal has 36 pins and supports PCB thicknesses from 1.6 mm to 3.2 mm. Mechanical specifications include a tightening torque of 17 N·m, a minimum insertion force of 40 N per pin, and a minimum extraction force of 30 N per pin (tested 24 hours after press-fit).
The operating temperature range is -55 °C to +150 °C. Storage conditions for single parts are 0 °C to +40 °C with up to 75 % RH. Packaging is available in bulk or tray. The part is RoHS, REACH, and Halogen Free compliant. Note that the screw is not included.
The rated current is 350 A maximum at 20 °C. Operating current depends on PCB, cable lug, and cross section of the cable.
The terminal has 36 pins.
The mounting type is Through Hole with Press-Fit termination.
The screw thread size is M10 with a thread length of 16 mm.
The operating temperature range is -55 °C to +150 °C.
The tightening torque is 17 N·m.
The terminal body is made of brass with a tin surface finish.
