| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Extraction Force | |
| Halogen Free | |
| Insertion Force | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Pcb Thickness (Minimum/Maximum) | |
| Screw Size | |
| Surface | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Tightening Torque |

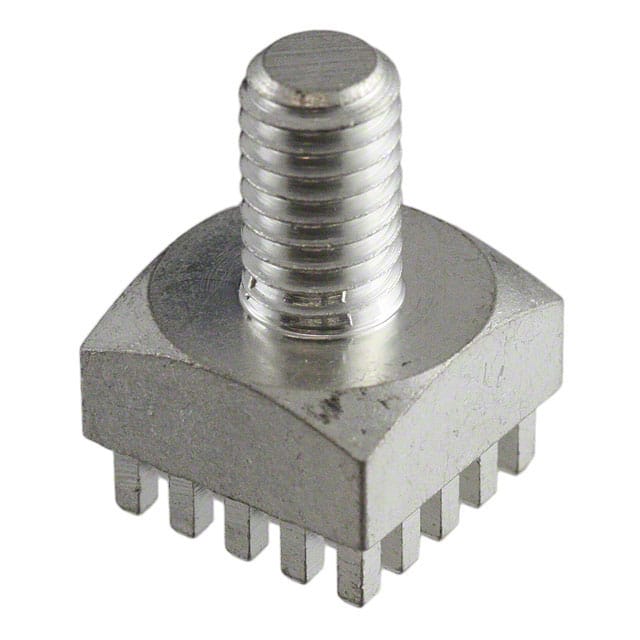

The Würth Elektronik 7461098 is a REDCUBE press-fit screw terminal from the WP-SHFU series. It features an M6 screw size and 25 pins, with a maximum rated current of 250 A at 20 °C. The terminal is designed for through-hole mounting with a press-fit termination style and shank terminal type.
Mechanically, the terminal is made of brass with a tin surface finish. It requires a minimum insertion force of 40 N per pin and a minimum extraction force of 30 N per pin (measured at least 24 hours after the press-fit process). The recommended PCB thickness ranges from 1.6 mm to 3.2 mm, and the tightening torque is 3.9 N·m.
The component operates over a temperature range of -55 °C to +150 °C and is packaged in trays. It is compliant with RoHS, REACH, and halogen-free standards.
The maximum rated current is 250 A at 20 °C.
The screw size is M6.
It has 25 pins.
Through-hole mounting with press-fit termination.
-55 °C to +150 °C.
PCB thickness must be between 1.6 mm and 3.2 mm.
