| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
307 pcs
|
307 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Insertion Force | |
| Lead Style | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Pcb Thickness (Minimum/Maximum) | |
| Rated Current | |
| SVHC Present | |
| Screw Size | |
| Surface | |
| Terminal Type | |
| Termination | |
| Thread Length | |
| Tightening Torque | |
| Width |

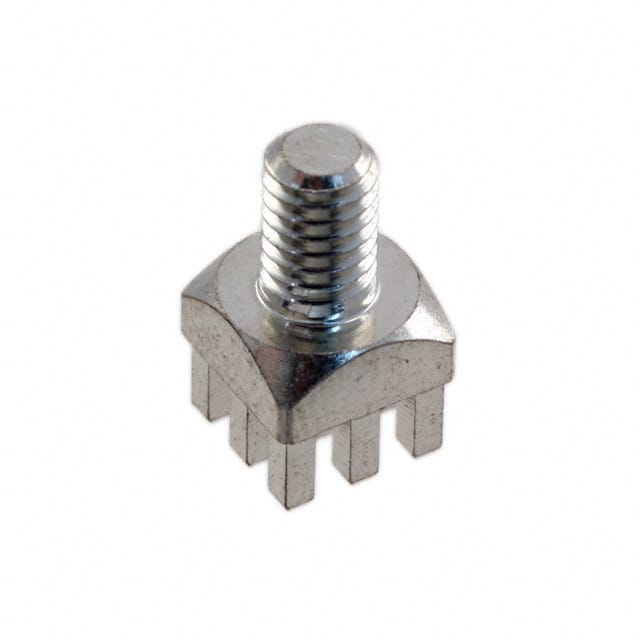

The 7461096 from Würth Elektronik is a REDCUBE PRESS-FIT screw terminal designed for high current applications. It features an M4 external thread with a 5mm thread length and is mounted via press-fit technology into a PCB. The terminal is constructed from brass with a tin-plated surface, ensuring good conductivity and corrosion resistance.
Key electrical specifications include a maximum rated current of 130A at 20°C, though the actual operating current depends on the PCB design, cable lug, and conductor cross-section. Mechanical properties include a tightening torque of 1.2 N·m, a minimum insertion force of 40 N per pin, and a minimum extraction force of 30 N per pin after 24 hours. The terminal supports PCB thicknesses from 1.6 mm to 3.2 mm.
The operating temperature range spans -55°C to +150°C, making it suitable for demanding environments. The part is packaged in a tray and is compliant with RoHS, REACH, and Halogen-Free standards. This terminal is ideal for wire-to-board connections, copper bar mounting, and laminated fuse installation.
130A max at 20°C.
Press-Fit through hole mounting.
M4.
-55°C to +150°C.
1.2 N·m.
Brass with tin surface.
1.6 mm to 3.2 mm.
