| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Halogen Free | |
| Insertion Force | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| Packaging Type | |
| Pcb Thickness (Minimum/Maximum) | |
| SVHC Present | |
| Screw Size | |
| Storage Temperature | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Tightening Torque |

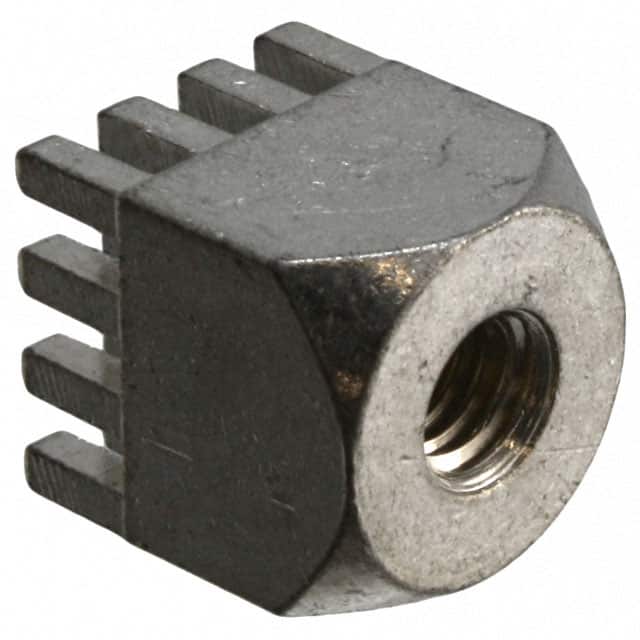

The Würth Elektronik 7461095 is a REDCUBE WP-BUFU Press-Fit terminal designed for high-current PCB connections. It features a M4 internal screw thread and 16 pins arranged in a through-hole package with press-fit termination, ensuring a reliable solderless connection to the PCB. The terminal is rated for a maximum continuous current of 180 A at 20°C and operates over a temperature range of -55°C to +150°C. The contacts are made of brass with a tin finish, and the tightening torque is specified at 1.2 N·m. The terminal requires a PCB thickness between 1.6 mm and 3.2 mm. Insertion force is minimum 40 N per pin, and extraction force is minimum 30 N per pin after 24 hours of press-fit. Packaging is in bulk. The component is RoHS compliant, REACH conform, and halogen-free. Note that screws are not included. This terminal is suitable for power distribution applications where high current capacity and robust mechanical connection are required.
180 A at 20°C.
16 pins.
Through-hole with press-fit termination.
-55°C to +150°C.
1.2 N·m.
1.6 mm to 3.2 mm.
Yes, compliant with 2011/65/EU and 2015/863.
