| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Halogen Free | |
| Height | |
| Insertion Force | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| PCB Thickness (Max) | |
| PCB Thickness (Min) | |
| Packaging Type | |
| Screw Size | |
| Storage Temperature | |
| Surface Finish | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thread Length | |
| Tightening Torque | |
| Width |

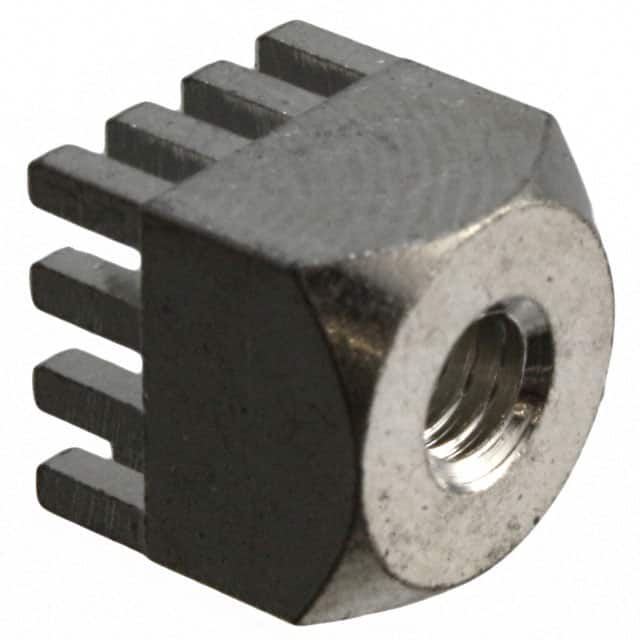

The Würth Elektronik 7461086 is a REDCUBE PRESS-FIT screw terminal from the WP-BUCF series, designed for high-current wire-to-board connections up to 175A. It features an M4 internal thread with a 6mm thread length and 12 press-fit pins for reliable through-hole mounting.
Constructed from brass with a tin surface finish, this terminal offers a tightening torque of 1.2 N·m and requires a minimum insertion force of 40 N per pin. It supports PCB thicknesses from 1.6 mm to 3.2 mm and operates over a temperature range of -55°C to +150°C.
Typical applications include mounting copper bars on PCBs, installation of laminated fuses, and high-current connections in rough environmental conditions. The part is supplied in bulk packaging and is RoHS, REACH, and Halogen Free compliant.
The rated current is 175 A, though operating current depends on PCB, cable lug, and cable cross section.
The internal thread is M4 with a thread length of 6 mm.
It has 12 press-fit pins.
Through-hole press-fit mounting.
-55°C to +150°C.
PCB thickness from 1.6 mm to 3.2 mm.
Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
