| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Features | |
| Halogen Free | |
| Mounting Type | |
| Number of Pins | |
| Packaging Type | |
| Pcb Thickness (Minimum/Maximum) | |
| Screw Size | |
| Terminal Type | |
| Termination | |
| Termination Style |

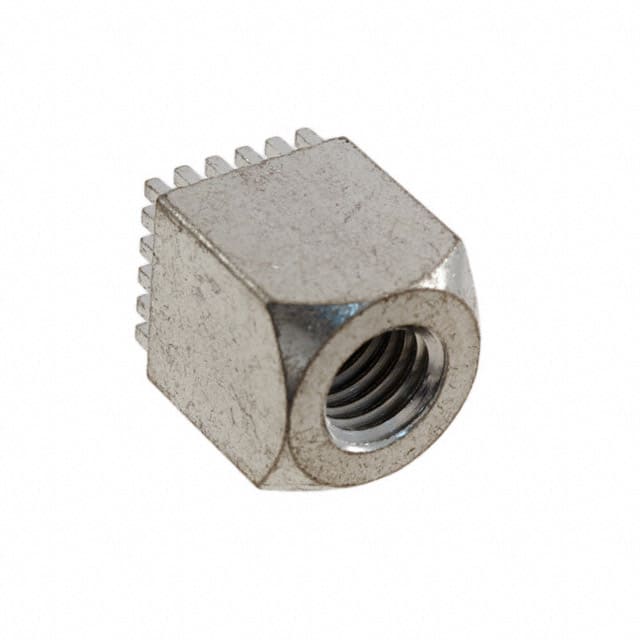

The Würth Elektronik 7461061 is a REDCUBE PRESS-FIT terminal from the WP-BUFU series, designed for high-current applications up to 350 A. It features an M10 internal thread screw connection and 36 pins, making it suitable for power distribution in industrial equipment. The terminal is made of brass with a tin surface finish and uses a press-fit termination for reliable PCB mounting without soldering. It operates over a temperature range of -55 °C to +150 °C. The part is RoHS, REACH, and Halogen Free compliant, and is packaged in bulk. Tightening torque is specified at 17 N·m, with minimum insertion force of 40 N and extraction force of 30 N after 24 hours. Suitable PCB thickness ranges from 1.6 mm to 3.2 mm.
350 A at 20 °C.
36 pins.
Through hole mounting with press-fit termination.
M10 internal thread.
-55 °C to +150 °C.
17 N·m.
Yes, compliant with RoHS (2011/65/EU & 2015/863).
