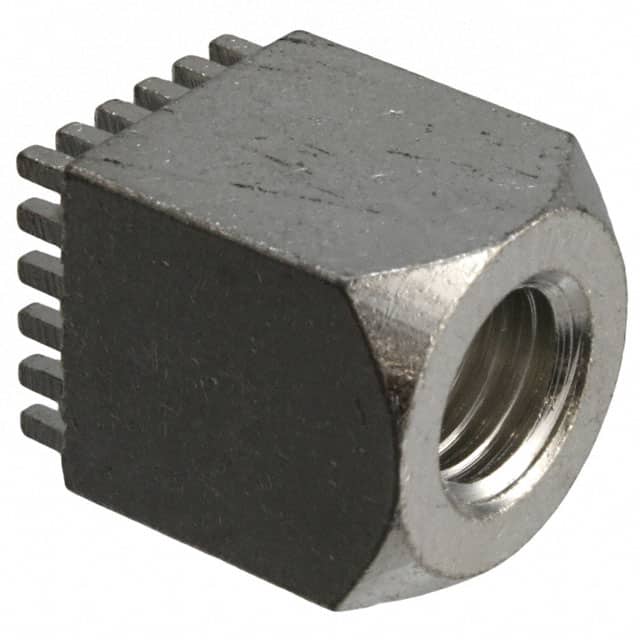

The Würth Elektronik 7461060 is a REDCUBE PRESS-FIT power terminal designed for high-current PCB connections. It features an M10 internal thread screw terminal and a 20-pin press-fit circumference pin-plate for a reliable, solderless connection to the PCB.
The terminal is rated for a continuous current of 350 A (dependent on PCB, cable lug, and cable cross-section) and is constructed from brass with a tin surface finish. The press-fit termination requires a minimum insertion force of 40 N per pin and provides a minimum extraction force of 30 N per pin after 24 hours. It accommodates PCB thicknesses from 1.6 mm to 3.2 mm with specified drill hole tolerances.
The component is suitable for demanding environments with an operating temperature range of -55 °C to +150 °C. It is supplied in bulk packaging and has a Moisture Sensitivity Level (MSL) of 1. The part is compliant with RoHS, REACh, and Halogen Free standards.
The rated current is 350 A, though the actual operating current depends on the PCB, cable lug, and cable cross-section.
It uses a through-hole press-fit mounting, which requires a minimum insertion force of 40 N per pin.
The terminal uses an M10 screw, with a recommended tightening torque of 17 N*m. The screw is not included.
The operating temperature range is -55 °C to +150 °C.
The terminal is made of brass with a tin surface finish.
The MSL is 1, and the packaging is bulk.
