| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Amps) | |
| Height | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature Range | |
| Packaging Method | |
| SVHC Present | |
| Screw Size | |
| Surface Finish | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Width |

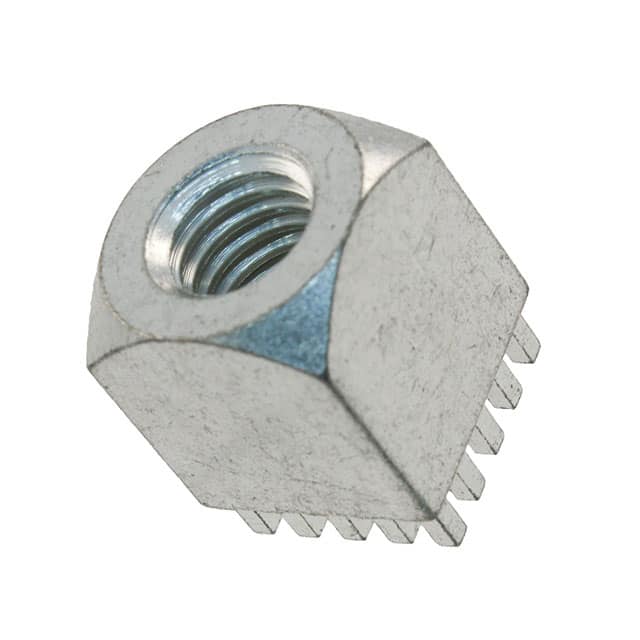

The Würth Elektronik 7461059 is a REDCUBE PRESS-FIT screw terminal with internal thread, designed for high-current wire-to-board connections up to 500A. This terminal features a brass construction with tin surface finish, offering reliable conductivity and corrosion resistance. It is rated for a continuous current of 240A and has an operating temperature range of -55°C to +150°C. The screw size is M6, and the terminal has 16 pins arranged in a 4x2.54mm pitch. The press-fit termination allows for secure mounting without soldering, making it suitable for applications such as mounting copper bars on PCBs and installing laminated fuses. The package is available in reel or tray packaging. The component is RoHS3 compliant and REACH unaffected.
240 A.
Through Hole.
16 pins.
M6.
-55°C to +150°C.
Brass with tin surface finish.
2.54 mm (4 pins per row, 10.16 mm total row spacing).
