| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Halogen Free | |
| Insertion Force | |
| Lead Style | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| PCB Thickness | |
| Screw Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Tightening Torque |

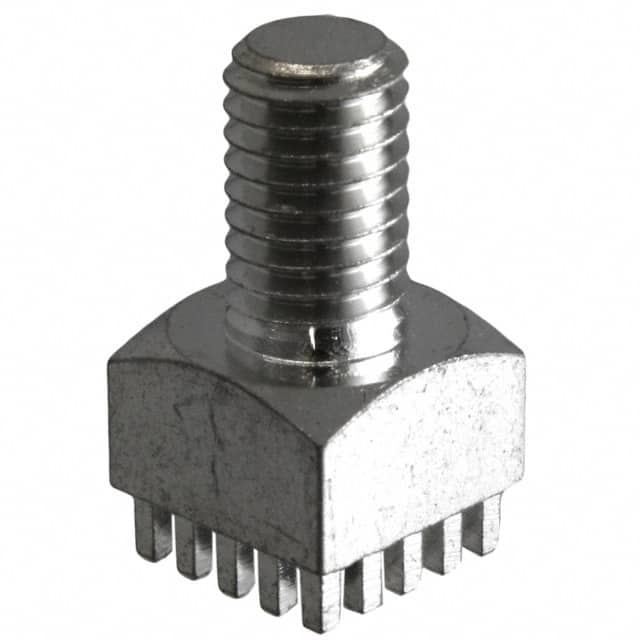

The 7460719 is a REDCUBE Press-Fit terminal from Würth Elektronik designed for high-current PCB connections. It features an M8 external thread and 25 positions for secure cable lug attachment.
Electrical and mechanical specifications include a rated current of 250A at 20°C, tightening torque of 9 N·m, minimum insertion force of 40N per pin, and minimum extraction force of 30N per pin after 24 hours. The terminal supports PCB thicknesses from 1.6mm to 3.2mm.
Construction uses a brass contact with tin surface finish and press-fit termination for through-hole mounting. Operating temperature range is -55°C to +150°C. The component is RoHS, REACH, and Halogen Free compliant. Packaging is in trays.
Suitable for power distribution, battery connections, and industrial equipment requiring reliable high-current interconnects. Note: screw is not included with the terminal.
The rated current is 250A at 20°C.
Through-hole press-fit mounting.
9 N·m.
Minimum insertion force 40N per pin, minimum extraction force 30N per pin after 24 hours.
1.6mm to 3.2mm.
-55°C to +150°C.
Yes, RoHS compliant per 2011/65/EU&2015/863.
