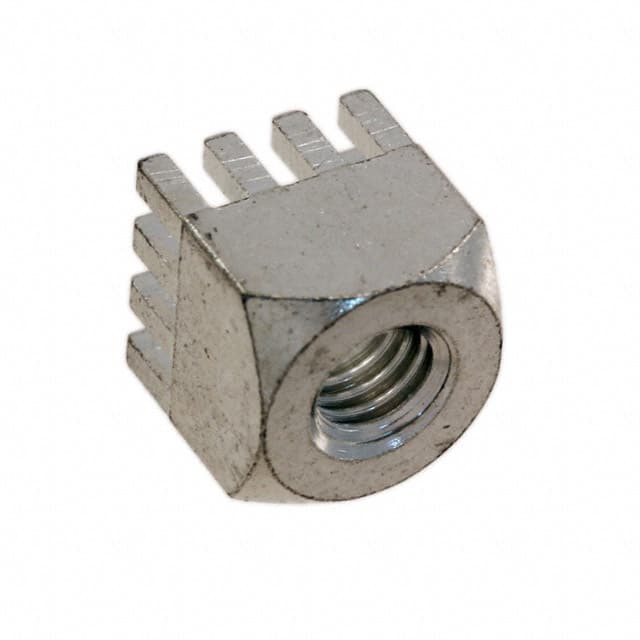

7460408 Würth Elektronik 7460408 REDCUBE PRESS-FIT screw terminal with M5 internal thread, rated for 175 A, 12 pins, through-hole press-fit mounting.
Mfr Part #:

7460408

Available from 3 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 7460408 REDCUBE PRESS-FIT screw terminal with M5 internal thread, rated for 175 A, 12 pins, through-hole press-fit mounting.
✓ Total Stock: 285 pcs

7460408 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
188 pcs
On Request
188 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
88 pcs
On Request
88 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7460408 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Amps)
Features
Halogen Free
Material
Mounting Type
Number of Pins
SVHC Present
Screw Size
Surface Finish
Terminal Type
Termination
Termination Style
View Similar Products (0)

7460408 Description

Short technical summary and product information.

The Würth Elektronik 7460408 is a REDCUBE PRESS-FIT screw terminal from the WP-BUCF series, designed for high-current wire-to-board connections up to 175 A. It features an M5 internal thread and a 12-pin press-fit termination for reliable through-hole PCB mounting without soldering.



This terminal is constructed from brass with a tin surface finish, ensuring good conductivity and corrosion resistance. It supports PCB thicknesses from 1.6 mm to 3.2 mm and operates over a wide temperature range of -55 °C to +150 °C. The press-fit design provides a gas-tight connection with a minimum insertion force of 40 N per pin and a minimum extraction force of 30 N per pin after 24 hours.



Typical applications include high-current wire-to-board connections, mounting of copper bars on PCBs, and installation of laminated fuses. The component is RoHS, REACH, and Halogen Free compliant, and has an MSL of 1. It is supplied in bulk packaging.

7460408 Quick Information

Product Type: Screw Terminal
Series: WP-BUCF
Canonical Name: WP-BUCF REDCUBE PRESS-FIT Screw Terminal with Internal Thread, 175 A, M5, 12 Pins
Subcategory: Press-Fit Terminal

7460408 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Conform or declared [(EC)1907/2006]

7460408 Features

  • Rated for 175 A continuous current.
  • M5 internal thread for secure connections.
  • 12-pin press-fit termination for reliable PCB mounting.
  • Brass construction with tin surface finish.
  • Operates from -55 °C to +150 °C.

7460408 Applications

  • High-current wire-to-board connections up to 175 A.
  • Mounting of copper bars on PCBs.
  • Installation of laminated fuses in power circuits.
  • Suitable for rough environmental conditions.

7460408 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated current of the 7460408?

The rated current is 175 A.

What is the mounting type for this terminal?

Through-hole press-fit mounting.

What is the operating temperature range?

-55 °C to +150 °C.

What screw size does the terminal use?

M5 internal thread.

How many pins does the 7460408 have?

12 pins.

What is the tightening torque for the screw?

2.2 N·m.

Is the 7460408 RoHS compliant?

Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
