| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| Extraction Force | |
| Features | |
| Height | |
| Insertion Force | |
| Material | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature Range | |
| PCB Thickness (Max) | |
| PCB Thickness (Min) | |
| Packaging Type | |
| Rated Current | |
| Screw Size | |
| Storage Temperature Range | |
| Surface Plating | |
| Terminal Type | |
| Termination | |
| Thread Length | |
| Tightening Torque | |
| Width |

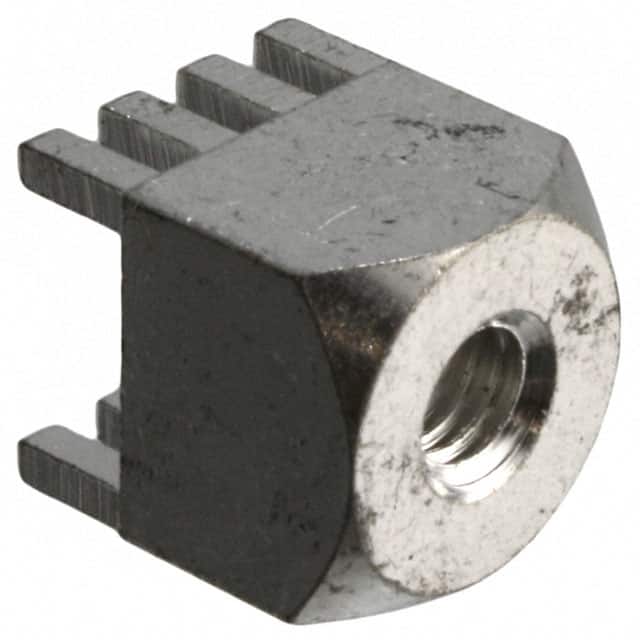

The Würth Elektronik 7460307 is a REDCUBE PRESS-FIT screw terminal from the WP-BUTR series, designed for high-current wire-to-board connections up to 160A. It features an M4 internal thread with a 6mm thread length and is supplied with a brass body and tin-plated surface. The press-fit termination ensures a reliable solderless connection to the PCB.
Key specifications include a rated current of 160A, operating temperature range from -55°C to +150°C, and a tightening torque of 1.2 N·m. The terminal requires a PCB thickness between 1.6mm and 3.2mm, with a minimum insertion force of 40N per pin and extraction force of 30N per pin after 24 hours. The component is packaged in bulk and has an MSL of 1 (unlimited).
This terminal is suitable for applications such as mounting copper bars on PCBs, installing laminated fuses, and general high-current connections in rough environmental conditions. The 8-pin, two-row configuration provides a compact footprint for dense PCB layouts.
The rated current is 160A.
Through-hole mounting with press-fit termination.
-55°C to +150°C.
M4 internal thread with a thread length of 6mm.
8 pins in a two-row configuration.
PCB thickness must be between 1.6mm and 3.2mm.
1.2 N·m.
