| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

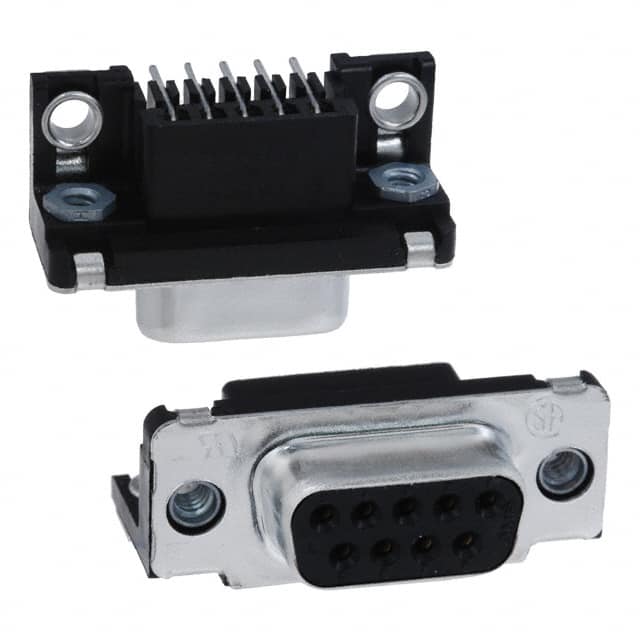

The TE Connectivity 745781-4 is a D-Sub receptacle connector featuring 9 female socket contacts arranged in 2 rows. It is designed for through-hole mounting with a right angle orientation, making it suitable for applications where space constraints require a low-profile connection. The connector uses solder termination for reliable electrical connections.
Electrical specifications include a current rating of 6A per contact. The contacts are gold plated with a thickness of 30.0 microinches (0.76 micrometers), providing good corrosion resistance and reliable signal integrity. The shell is made of steel with a tin plated finish, and the connector layout is shell size 1 (DE, E).
The housing features a flange with 4-40 threaded inserts for secure mounting, and includes a ground strap for grounding purposes. The insulator material has a UL94 V-0 flammability rating, indicating it meets standards for flame retardancy. The backset spacing is 0.318 inches (8.08 mm).
Receptacle, Female Sockets.
9 positions.
Through Hole, Right Angle.
6 A.
Gold, 30.0 microinches (0.76 micrometers).
Steel, Tin Plated.
UL94 V-0.
