| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

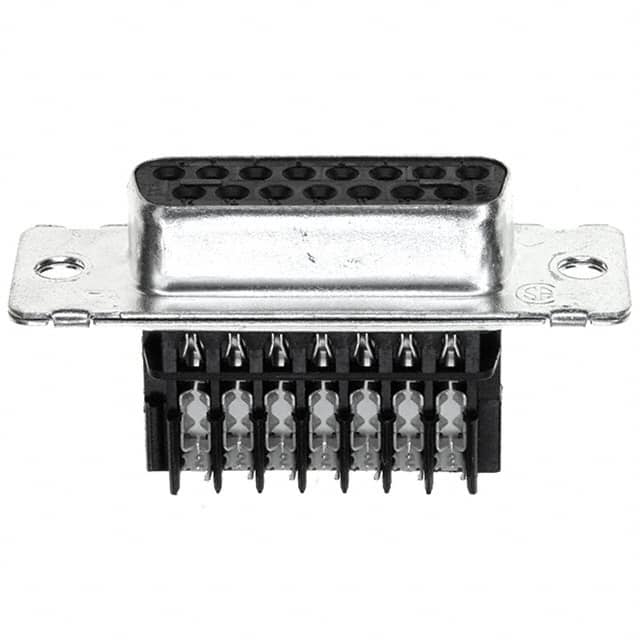

This is a TE Connectivity D-Sub receptacle connector, part number 745493-5, featuring 15 female socket contacts arranged in 2 rows. The connector uses IDC (Insulation Displacement Contact) termination for discrete wire, allowing for quick and reliable wire-to-board or wire-to-wire connections without stripping insulation. The mounting type is free hanging (in-line), making it suitable for cable assemblies where a panel mount is not required.
The contacts are finished with gold plating of 1.00µin (0.025µm) thickness, providing excellent corrosion resistance and reliable electrical performance for signal applications. The shell is made of steel with a tin plating, and the connector layout is shell size 2 (DA, A). The flange feature is housing/shell unthreaded, supporting simple assembly. The insulator material has a UL94 V-0 flammability rating, indicating good flame retardance.
This connector is designed for signal-level circuits; the current rating varies with the wire gauge used. It is commonly employed in data communication, computer peripherals, and industrial control systems where a compact, reliable D-Sub interface is needed. No product datasheet is currently available; refer to the manufacturer for detailed specifications and compliance documentation.
The connector has 15 positions.
The mounting type is free hanging (in-line).
The contact finish is gold with a thickness of 1.00µin (0.025µm).
The shell is made of steel with a tin plating.
The termination style is IDC (Insulation Displacement Contact) for discrete wire.
The connector layout is shell size 2 (DA, A).
The material flammability rating is UL94 V-0.
