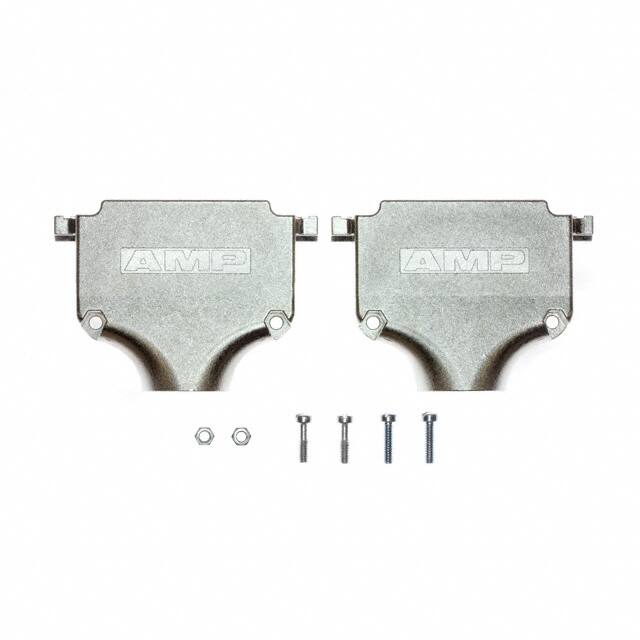

745175-1 Two piece D-Sub backshell for 50 position connectors. Shielded with nickel over copper plating and 180° cable exit.
Mfr Part #:

745175-1

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
Two piece D-Sub backshell for 50 position connectors. Shielded with nickel over copper plating and 180° cable exit.
✓ Total Stock: 45 pcs

745175-1 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

745175-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
Shielding
View Similar Products (0)

745175-1 Description

Short technical summary and product information.

The TE Connectivity 745175-1 is a two piece D-Sub backshell designed for 50 position connectors. It features a 180° cable exit and is fully shielded with nickel over copper plating on a zinc alloy body. The backshell includes assembly hardware and strain relief, and comes with 4-40 mating screws for secure attachment. It accommodates round cables and has a silver color finish. This backshell provides mechanical protection and EMI/RFI shielding for D-Sub cable assemblies in industrial and data communication applications.

745175-1 Quick Information

Product Type: D-Sub Backshell
Canonical Name: D-Sub Backshell, 50 Position, 180° Cable Exit, Shielded
Subcategory: D-Sub Backshells

745175-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

745175-1 Features

  • Two piece backshell design for D-Sub connectors.
  • Shielded construction with nickel over copper plating.
  • 50 position configuration with 180° cable exit.
  • Includes mating screws 4-40 and strain relief hardware.
  • Made of zinc alloy with silver color.

745175-1 Applications

  • Shielding D-Sub connectors in industrial environments.
  • Providing strain relief for round cables.
  • Securing cable assemblies in data communication systems.

745175-1 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TE Connectivity 745175-1 backshell support?

50 positions.

What is the cable exit angle of this backshell?

180°.

Is the 745175-1 backshell shielded?

Yes, it is shielded.

What material is the backshell made of?

Metal, Zinc Alloy.

What plating does it have?

Nickel over Copper.

What hardware is included?

Assembly Hardware, Strain Relief, and Mating Screws 4-40.

What type of cable does it accommodate?

Round cable.

745175-1 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
5745175-4
5745175-4
TE Connectivity
TE Connectivity 5745175-4 is a two-piece D-Sub backshell for 50 positions with a 180° cable exit. It is shielded and features nickel over copper plating with a silver finish.
View Part
745175-5
745175-5
TE Connectivity
TE Connectivity 745175-5 is a two-piece backshell for D-Sub connectors, featuring 50 positions, 180° cable exit, and nickel over copper plating.
View Part
5745175-1
5745175-1
TE Connectivity
CONN BACKSHELL 50POS 180DEG SHLD
View Part
5745175-5
5745175-5
TE Connectivity
CONN BACKSHELL 50POS 180DEG SHLD
View Part
