| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

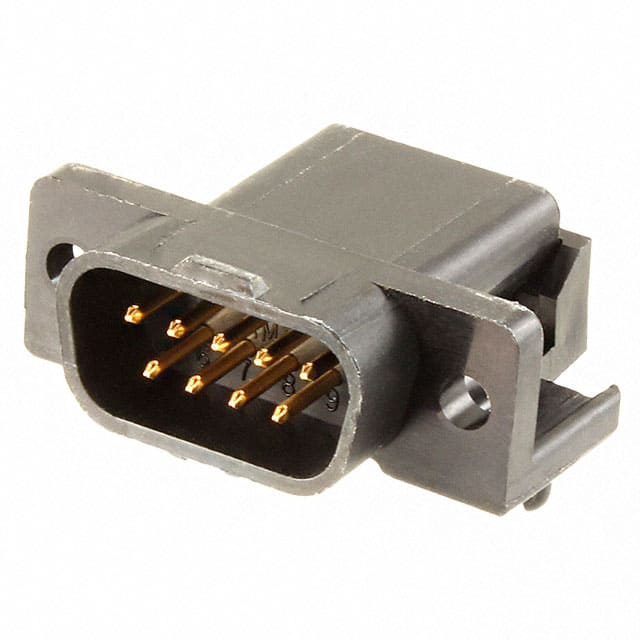

The TE Connectivity 745001-2 is a 9-position D-Sub plug connector designed for reliable signal interconnections in a compact DE (E) shell size. This connector utilizes male pins with gold contact finish to ensure low resistance and corrosion resistance over repeated mating cycles.
The connector is configured as a right-angle through hole mount with solder termination, making it suitable for PCB designs where space constraints require a right angle interface. It includes a board lock feature to secure the connector to the PCB during soldering and operation. The flange feature uses an unthreaded housing/shell for mounting.
The glass-filled thermoplastic insulator carries a UL94 V-2 flammability rating. The backset spacing of 14.99 mm provides clearance for PCB layout. This component is intended for use in D-Sub connector assemblies where signal-level connections are required.
It is a D-Sub plug connector with male pins.
It has 9 positions arranged in 2 rows.
Through hole, right angle mounting with solder termination.
It features a board lock for secure attachment to the PCB.
