| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95 pcs
|
95 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Depth | |
| Height | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Poles | |
| Positions Per Level | |
| Termination Style | |
| Voltage | |
| Width | |
| Wire Gauge | |
| Wire Termination |

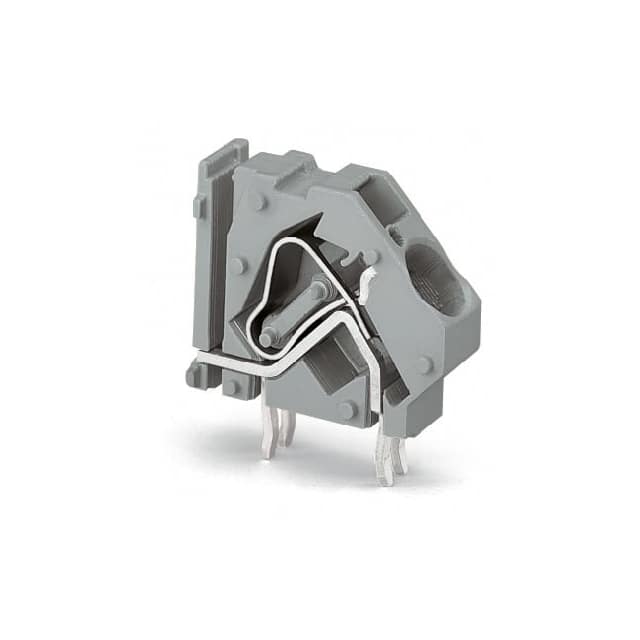

The Wago 745-857/006-000 is a 1-pole stackable PCB terminal block designed for building custom terminal strip assemblies. It accepts solid and fine-stranded conductors from 0.2 mm² to 16 mm² (24 to 6 AWG) and features a CAGE CLAMP spring cage connection for quick, maintenance-free wiring. The terminal block has a 10 mm pin spacing and a 45° conductor entry angle, making it suitable for space-constrained PCB layouts. Electrical ratings include 76 A rated current per IEC/EN 60664-1 and 10 A per UL 1059 (Use Group B/D). Rated voltage is 320 V (IEC III/3), 630 V (IEC II/2), and 300 V (UL/CSA) with a 4 kV rated impulse voltage. Through hole mounting with four solder pins provides high mechanical stability. An integrated testing tap and commoning option via jumper slots simplify potential distribution and testing. The terminal block is green-yellow in color and is ideal for industrial control, power distribution, and high-current board-to-wire applications.
This terminal block has 1 pole.
The pin spacing is 10 mm.
Rated current is 76 A per IEC/EN 60664-1 and 10 A per UL 1059 (Use Group B/D).
Rated voltage is 320 V (IEC III/3), 320 V (IEC III/2), 630 V (IEC II/2), and 300 V (UL/CSA).
Through hole mounting.
It accepts solid and fine-stranded conductors from 0.2 mm² to 16 mm² (24 to 6 AWG).
CAGE CLAMP spring cage connection.
