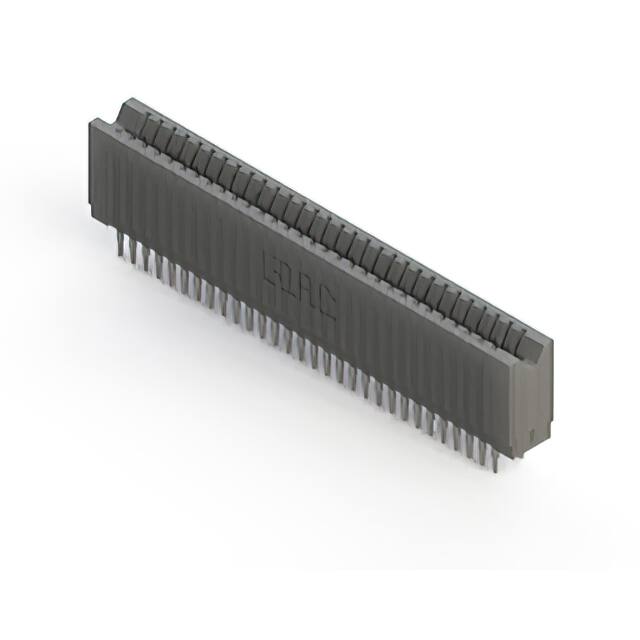

The EDAC 745-060-540-206 is a dual female edgeboard connector designed for reliable circuit board edge connections. It offers 60 total contacts arranged in a dual readout configuration with 2 rows, each row having 30 positions spaced at 2.54mm (0.100") pitch.
This connector uses cantilever contacts made of copper alloy with a gold finish of 0.762µm (30.0µin) thickness. It supports through hole mounting with both press-fit and wire wrap termination options. The black housing accommodates a card thickness from 0.054" to 0.070" (1.37mm to 1.78mm).
The operating temperature range spans -40°C to 105°C, making it suitable for industrial environments. The contacts are female type, and the readout is dual, allowing connection to both sides of the mating card edge.
| Qty | Low | High |
|---|---|---|
| 1+ | $12.64 | $12.64 |
| 10+ | $11.21 | $11.21 |
| 25+ | $9.08 | $9.08 |
| 50+ | $8.77 | $8.77 |
| 100+ | $7.58 | $7.58 |
| 1,000+ | $7.38 | $7.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 60 total contacts arranged as dual readout with 2 rows and 30 positions per row at 0.100" pitch.
The pitch is 2.54mm (0.100").
It uses through hole mounting with press-fit and wire wrap termination options.
The operating temperature range is -40°C to 105°C.
Contacts are made of copper alloy with a gold finish of 0.762µm (30.0µin) thickness.
It supports card thickness from 0.054" to 0.070" (1.37mm to 1.78mm).
