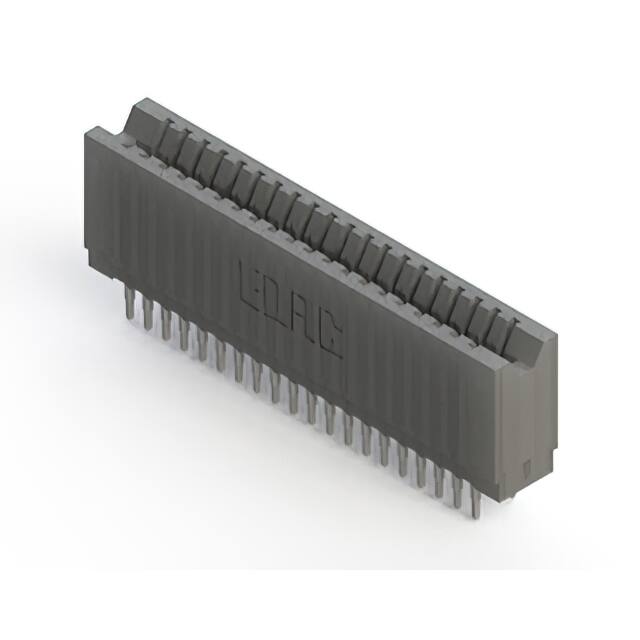

745-040-520-206 The Edac 745-040-520-206 is a dual female edgeboard connector with 40 positions at 0.100" pitch. It features through hole press-fit termination and gold contacts.
Mfr Part #:

745-040-520-206

Available from 1 distributors
Mfr Name: Edac
Edac
The Edac 745-040-520-206 is a dual female edgeboard connector with 40 positions at 0.100" pitch. It features through hole press-fit termination and gold contacts.
✓ Total Stock: 225 pcs
$ Price Range: $5.03 - $8.18

745-040-520-206 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
225 pcs
On Request
225 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

745-040-520-206 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Gender
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Tape & Reel
Termination
Termination Style
View Similar Products (0)

745-040-520-206 Description

Short technical summary and product information.

The Edac 745-040-520-206 is a dual female edgeboard connector designed for use with non-specified dual edge cards. It offers 40 positions (per product title) with a contact pitch of 2.54mm (0.100"). The connector uses a through hole mounting style with press-fit termination for secure and reliable connections.



Contacts are made from copper alloy with a gold finish of 30µin (0.76µm) thickness, ensuring excellent conductivity and corrosion resistance. The cantilever contact type provides reliable mating with the card edge. The connector supports card thicknesses from 1.37mm to 1.78mm (0.054" to 0.070").



Rated for an operating temperature range of -40°C to 105°C, this connector is suitable for a variety of environments. It is black in color and features dual readout for both sides of the card. The connector is compliant with RoHS3 (unverified), REACH, and has an MSL of 1.

745-040-520-206 Quick Information

Product Type: Edgeboard Connector
Series: 745
Canonical Name: EDAC 745-040-520-206 Edgeboard Connector, Dual Female, 40 Positions, 0.100" Pitch, Through Hole, Press-Fit, Gold Contacts
Subcategory: Dual Edge, Female

745-040-520-206 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

745-040-520-206 Estimated Pricing

Qty Low High
1+ $8.18 $8.18
10+ $7.36 $7.36
25+ $6.12 $6.12
100+ $5.55 $5.55
250+ $5.09 $5.09
500+ $5.03 $5.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

745-040-520-206 Features

  • Dual female edgeboard connector, 40 positions.
  • 0.100" contact pitch for standard spacing.
  • Gold plated contacts, 30µin thickness.
  • Press-fit termination with through hole mounting.
  • Operating temperature range -40°C to 105°C.

745-040-520-206 Applications

  • Designed for standard dual edge circuit cards.
  • Used in backplane and interconnect applications.
  • Suitable for high-density interconnect needs.

745-040-520-206 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the Edac 745-040-520-206 connector?

The pitch is 2.54mm (0.100").

What is the mounting type for this connector?

Through hole mounting with press-fit termination.

How many positions does this connector have?

The product title lists 40 positions, but attribute data shows 20 positions. Verify with the manufacturer or datasheet.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Gold with 30µin (0.76µm) thickness.

What card thickness does this connector support?

Card thickness range of 1.37mm to 1.78mm (0.054" to 0.070").

Is this connector RoHS compliant?

It is listed as RoHS3 compliant, but this is unverified.
