| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
261 pcs
|
261 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

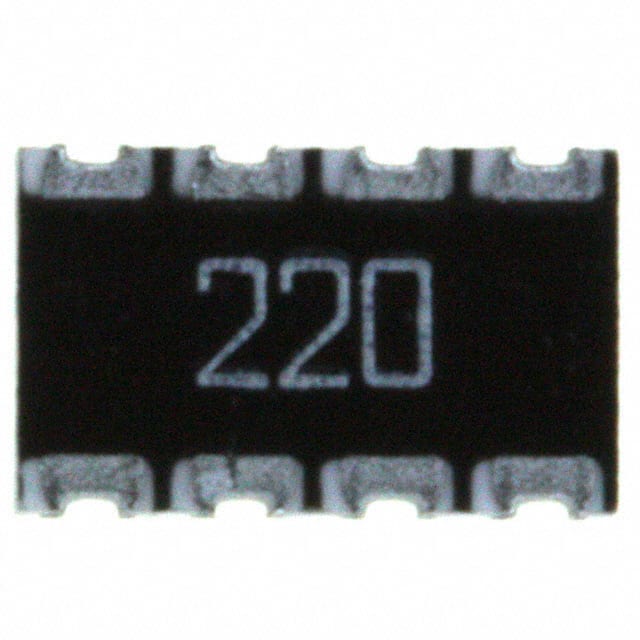

The CTS Resistor Products 744C083220JP is a high-density resistor array from the 74x series, utilizing thick film technology. This component features 4 isolated resistors, each rated for 125mW with a resistance value of 22 Ohms and a tolerance of ±5%. The operating temperature range is -55°C to 125°C, with a temperature coefficient of ±200ppm/°C.
Designed for surface mounting, this resistor array comes in a 2012 package with concave, long side terminals. Its dimensions are 5.08mm in length, 3.20mm in width, and 0.70mm in height. The component has 8 pins and is RoHS3 compliant with lead-free termination finish.
This resistor array offers a low-profile solution suitable for applications requiring space savings compared to discrete resistors. Its construction is leadless, with solder-coated nickel barrier pads.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 744C083220JP resistor array has a resistance value of 22 Ohms.
The tolerance for the 744C083220JP resistor array is ±5%.
The 744C083220JP resistor array contains 4 resistors.
The 744C083220JP resistor array is supplied in a 2012 package with concave, long side terminals.
The operating temperature range for the 744C083220JP resistor array is -55°C to 125°C.
Yes, the 744C083220JP resistor array is RoHS3 compliant.
